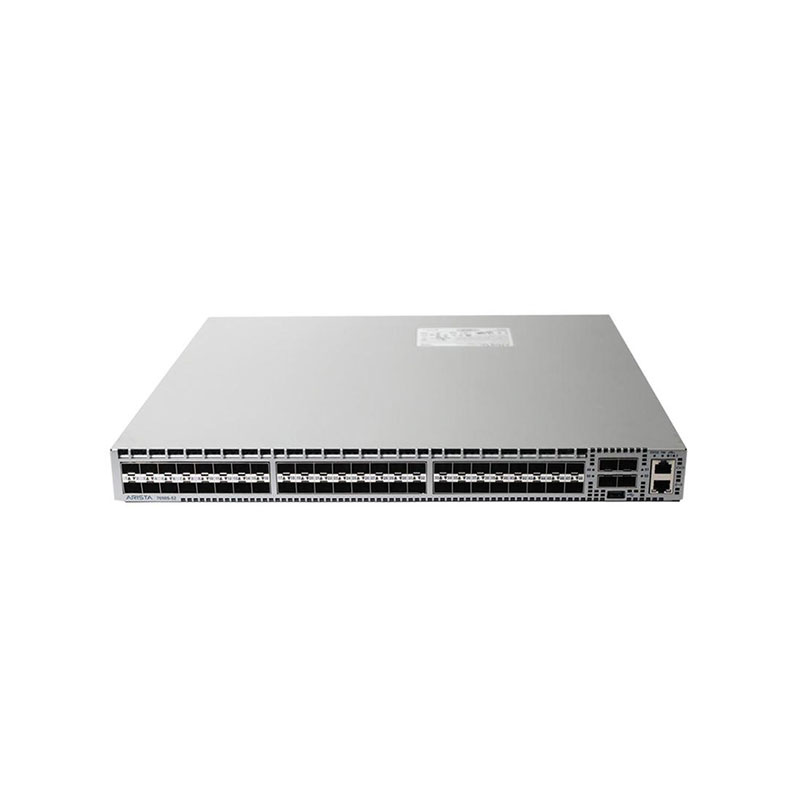

DCS-7048T-A-R Arista 48 x Ports 1000Base-T RJ-45 + 4 x Ports SFP Switch
DCS-7048T-A-R Overview
The Arista DCS-7048T-A-R is a high-performance Layer 2/3 switch designed for enterprise and data center networks requiring reliable Gigabit connectivity and flexible uplink options. It features 48 1000Base-T RJ-45 ports for copper-based connections and 4 SFP ports for fiber or high-speed uplinks, providing versatility for mixed network environments.This switch supports advanced Layer 2 and Layer 3 features, including VLANs, link aggregation, QoS, and inter-VLAN routing, allowing optimized traffic management and scalable network deployment. Its 1U rack-mountable form factor ensures high-density deployment in standard data center racks.
DCS-7048T-A-R Technical Specifications
Arista 48 x Ports 1000Base-T RJ-45 + 4 x Ports SFP Switch
Manufacturer Part Number: DCS-7048T-A-R
Brand Name: Arista
Product Line: 7048T-A Series
Product Type: Managed Layer 3 Gigabit Ethernet Switch
Total Ports: 52
Port Type: 48 x 1000Base-T RJ-45, 4 x 1G SFP
Switching Capacity: 176 Gbps
Forwarding Rate: 130.9 Mpps
Layer Support: Layer 2 / Layer 3
MAC Address Table: 32,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Routing: Static, RIP, OSPF, BGP, IPv4/IPv6
Link Aggregation: IEEE 802.3ad LACP
Quality of Service (QoS): 8 queues, IEEE 802.1p, DSCP
Security: 802.1X, ACLs, RADIUS, TACACS+
Management: CLI, Web GUI, SNMP, CloudVision, REST API
Port Mirroring: Supported
Stacking Capability: Supported (up to 4 units)
LED Indicators: System, Link/Activity, Speed
PoE Support: Not available
