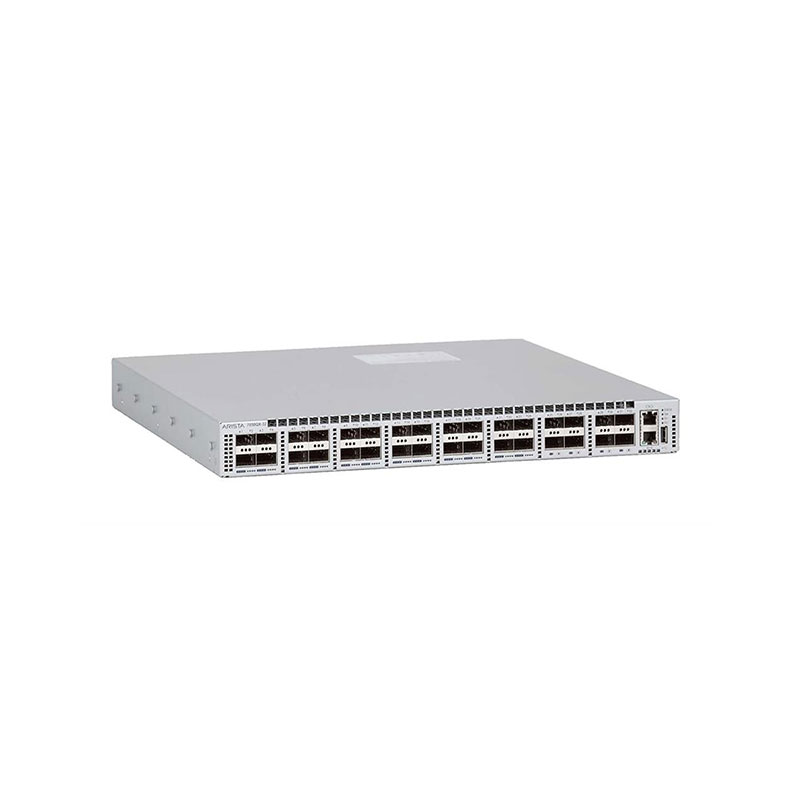

DCS-7050QX-32-F Technical Specifications
Arista 32-Ports QSFP+ Layer3 Switch
Manufacturer Part Number: DCS-7050QX-32-F
Brand Name: Arista
Product Line: 7050QX Series
Product Type: Managed Layer 3 Data Center Switch
Total Ports: 32
Port Type: 32 x 40GbE QSFP+
Switching Capacity: 2.56 Tbps
Forwarding Rate: 1,440 Mpps
Layer Support: Layer 2 / Layer 3
MAC Address Table: 128,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Routing: Static, OSPF, BGP, IS-IS, IPv4/IPv6
Link Aggregation: IEEE 802.3ad LACP
Quality of Service (QoS): 8 queues, IEEE 802.1p, DSCP
Security: 802.1X, ACLs, RADIUS, TACACS+
Management: CLI, SNMP, CloudVision, REST API
Port Mirroring: Supported
