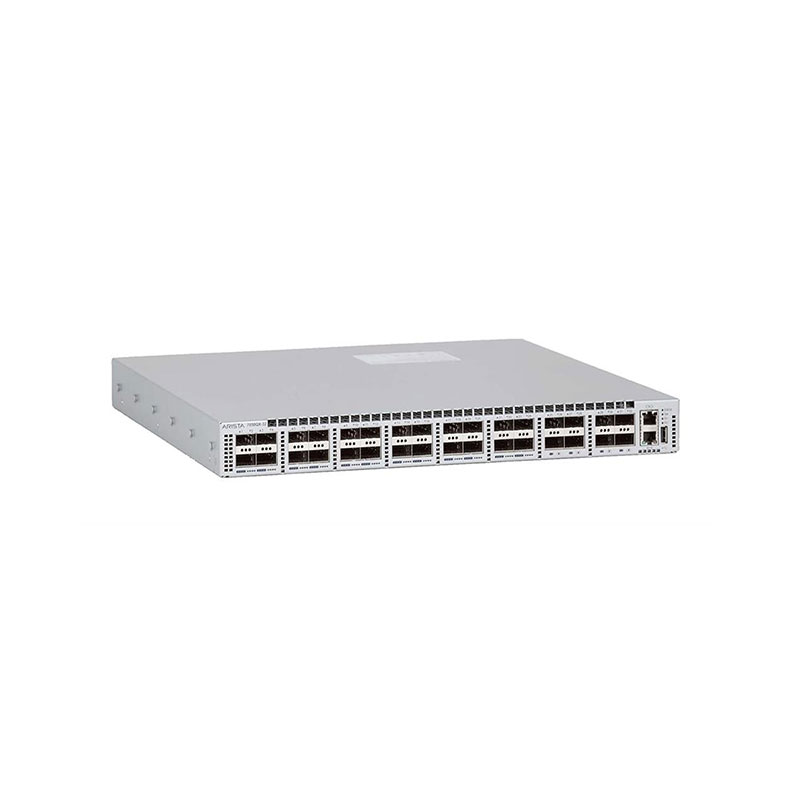

DCS-7050QX-32-F Arista 32-Ports QSFP+ Layer3 Switch
DCS-7050QX-32-F Overview
The Arista DCS-7050QX-32-F is a high-density, low-latency Layer 3 switch engineered for cloud-scale data centers and enterprise core networks requiring massive throughput and flexible deployment options. It provides 32 QSFP+ ports, each supporting 40GbE connectivity or breakout into 4x 10GbE, delivering up to 128 ports of 10GbE in a compact 1U design.Powered by Arista EOS (Extensible Operating System), the switch enables advanced features such as VXLAN, MLAG, ECMP, OpenFlow, and extensive automation/programmability, making it ideal for modern cloud, virtualization, and HPC environments.
DCS-7050QX-32-F Technical Specifications
Arista 32-Ports QSFP+ Layer3 Switch
Manufacturer Part Number: DCS-7050QX-32-F
Brand Name: Arista
Product Line: 7050QX Series
Product Type: Managed Layer 3 Data Center Switch
Total Ports: 32
Port Type: 32 x 40GbE QSFP+
Switching Capacity: 2.56 Tbps
Forwarding Rate: 1,440 Mpps
Layer Support: Layer 2 / Layer 3
MAC Address Table: 128,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Routing: Static, OSPF, BGP, IS-IS, IPv4/IPv6
Link Aggregation: IEEE 802.3ad LACP
Quality of Service (QoS): 8 queues, IEEE 802.1p, DSCP
Security: 802.1X, ACLs, RADIUS, TACACS+
Management: CLI, SNMP, CloudVision, REST API
Port Mirroring: Supported
