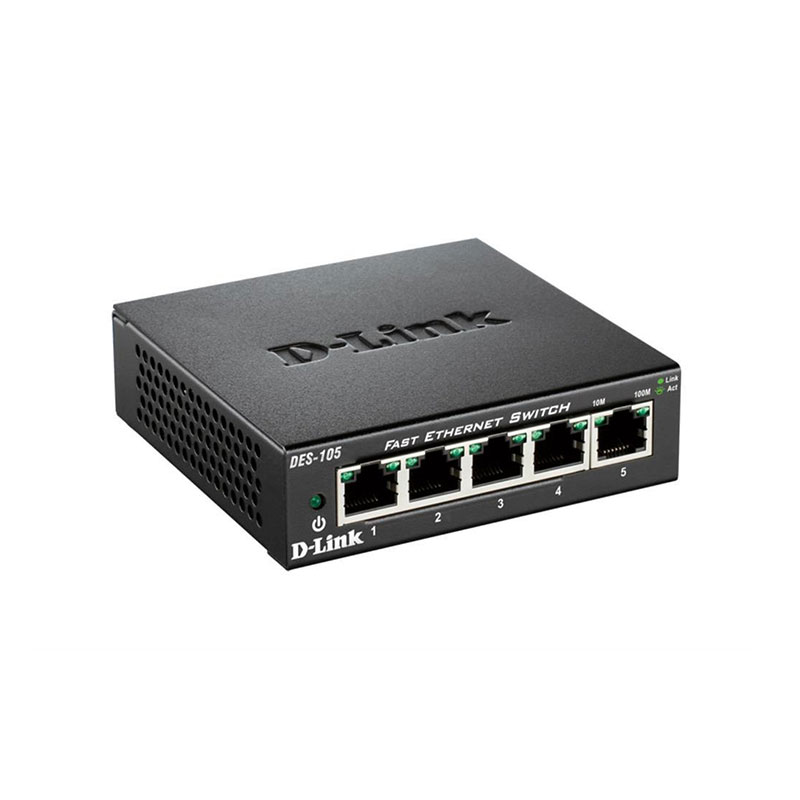

DES-105 D-Link 5-Port 10/100 Fast Ethernet Desktop Ethernet Switch
DES-105 Overview
The D-Link DES-105 is a compact and reliable unmanaged desktop switch designed for small offices, home networks, or workgroups that require fast and simple connectivity. It features 5 Fast Ethernet ports (10/100 Mbps) that enable seamless file sharing, printing, and multimedia streaming across multiple devices.With plug-and-play installation, no configuration is required, making it ideal for non-technical users. The switch supports auto MDI/MDIX on all ports, eliminating the need for crossover cables, and provides IEEE 802.3x flow control for reliable data transfer.
DES-105 Technical Specifications
D-Link 5-Port 10/100 Fast Ethernet Desktop Ethernet Switch
Manufacturer Part Number: DES-105
Brand Name: D-Link
Product Line: DES Series
Product Type: Unmanaged Fast Ethernet Switch
Total Ports: 5
Port Type: 5 x 10/100Base-TX RJ-45
Switching Capacity: 1 Gbps
Forwarding Rate: 0.74 Mpps
Layer Support: Layer 2
MAC Address Table: 2,000 entries
VLAN Support: Not supported
Spanning Tree Protocols: Not supported
Routing: Not supported
Link Aggregation: Not supported
Quality of Service (QoS): IEEE 802.1p (basic QoS)
Security: Not supported
Management: Unmanaged (plug-and-play)
Port Mirroring: Not supported
Stacking Capability: Not supported
LED Indicators: Power, Link/Activity
