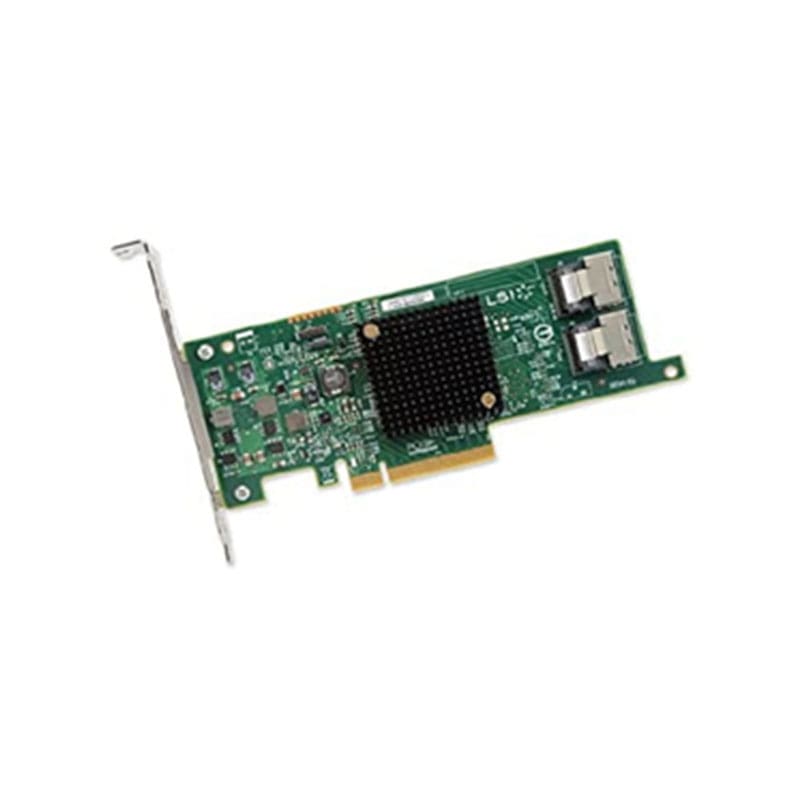

DFK7K Dell Lsi SAS9207-8i HBA 6GBPS PCI-E 3.0 X8 SAS Host Bus Adapter
DFK7K Overview
The Dell DFK7K LSI SAS9207-8i HBA is a PCI-E 3.0 x8 SAS Host Bus Adapter. It supports up to eight SAS or SATA devices and provides a data transfer rate of up to 600MBps per port. The PCI-E 3.0 interface provides a higher bandwidth and faster data transfer rates than the previous generation PCI-E 2.0 interface, making it ideal for demanding applications that require high throughput and low latency.
$75
DFK7K Technical Specifications
Dell Lsi SAS9207-8i HBA 6GBPS PCI-E 3.0 X8 SAS Host Bus Adapter 600MBPS Data Rate Two Mini SAS SFF-8087 Connections
Manufacturer: Dell
Part Number or SKU# DFK7K
Product Type : Controller
Product Name : SAS-SATA
Technical Information
Host Bus Type X8 Lane Pci Express® 3.0
Devices Supported 256 Non-raid Sas/sata Devices
Fusion Mpt Support Fusion Mpt™ 2.0
Internal Connectors 2 Mini-sas Sff8087
Operating Temperature 0°c To 55°c
Operating Voltage(v) +12v +/-8%, 3.3v +/-8%
Os Supportmicrosoft Windows®, Linux® (suse , Red Hat), Solaris®, Vmware®, Freebsd
Pci Power 9.8w Typical, Airflow 200 Lfm
I/o Controllerlsi Sas2308
