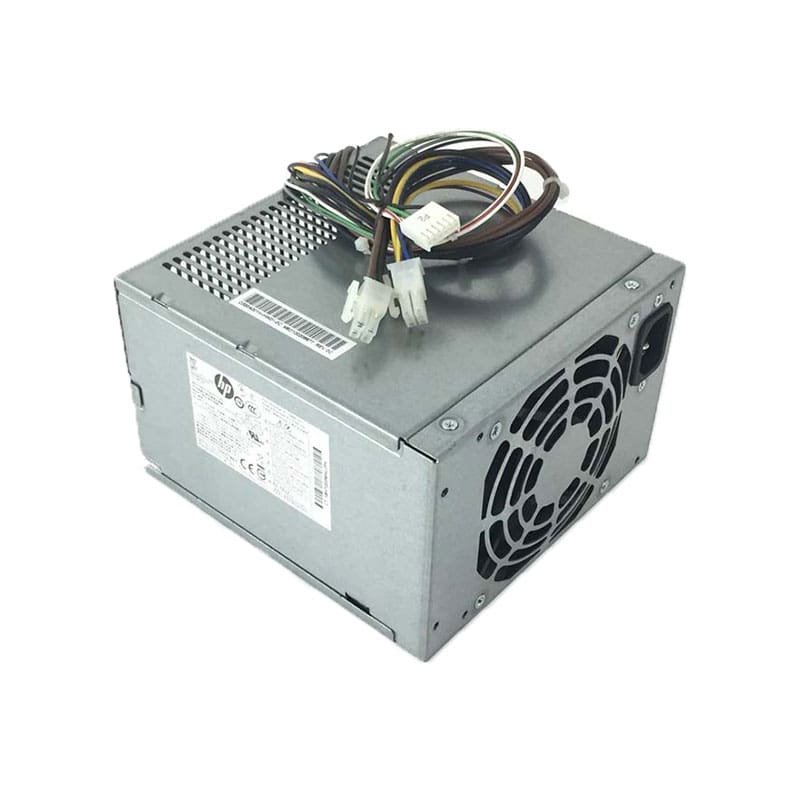

DPS-320NB A Technical Specifications
HP 320 Watts 12VDC Output Power Supply Unit Standard
Manufacturer: HP
Type: ATX Form Factor
Width: 100mm
Height: 150mm
Length: 150mm
Power: 320W
AC Input: 100-240v~/5.5A
DC Output:
+12.1 Vmain/16A, +12.1 Vcpu/14A
-12V/0.15A, +12Vsb/1.3A
+12.1Vmain & 12.1Vcpu (not exceed 320W)
Input Frequency Range: 50-60 Hz
Max Output Power: 320W Max Power
Output Capacity: 320 W
Fan: 1 Fan
Connector: 1x 4-pin ATX, 1x 6-pin Auxiliary PCI-E, 1x 6-pin Connector
