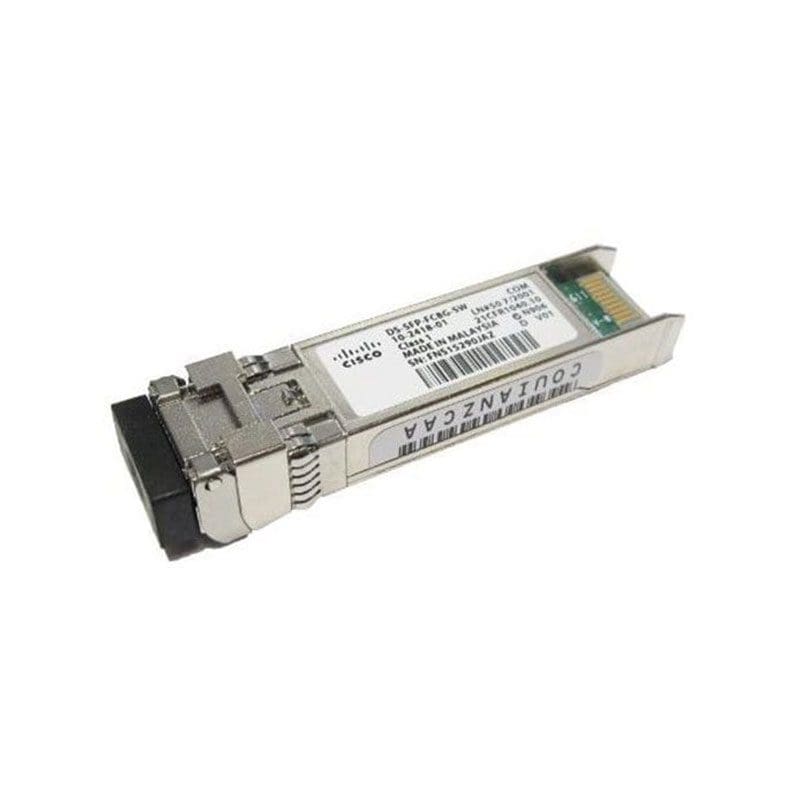

DS-SFP-FC-2G-SW Cisco 1/2GB SFP For MDS 9000 Fiber Module

DS-SFP-FC-2G-SW Overview

Cisco 1/2GB SFP For MDS 9000 Fiber Channel Switching Modules
Cisco DS-SFP-FC-2G-SW SFP transceiver. It is a high-performance small form factor pluggable SFP multi-mode transceiver for 2G fiber channel short reach the application. It fully complies with the SFP Multi-Sourcing Agreement (MSA) and can be used on the MSA compliant networking equipment. The 2G fiber channel SFP transceiver consists of the below sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 850nm VCSEL laser and the PIN photo-detector. The SFP transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

$57

Buy Now
Availability: In Stock
SKU:DS-SFP-FC-2G-SW
Brand:

DS-SFP-FC-2G-SW Technical Specifications

Cisco 1/2GB SFP For MDS 9000 Fiber Channel Switching Modules.

General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number DS-SFP-FC-2G-SW
Brand Name Cisco
Product Name Cisco 1/2-Gbps Fibre Channel-Shortwave, SFP, LC
Form Factor: SFP
Cisco Transceiver
Data Rate: 2.125/1.0625Gbps
Wavelength: 850nm
Connector: Dual LC
Cable Type: MMF
Reach Distance: 300m/500m
Operating Temperature Range: 0°C to 70°C
Digital Optical Monitoring (DOM): Without
Applications: Fiber Channel
