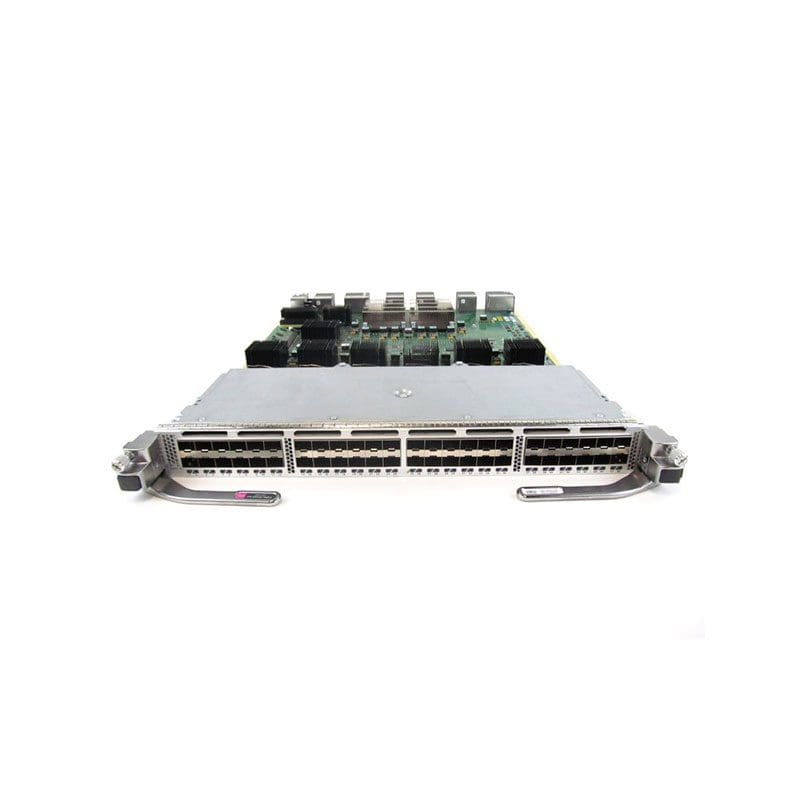

Refurbished DS-X9448-768K9b Technical Specification
Cisco Switching Module Switch 48 Ports
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Switching Module
Packaged Quantity :1
Networking
Type :Switch
Subcategory :Fibre Channel and SAN
Subtype :Fibre Channel
Form Factor :Plug-in module
Ports Qty :48
Fibre Channel :FAIS, FAIS-2, FC-BB-2, FC-BB-3, FC-BB-4, FC-BB-5, FC-DA, FC-DA-2, FC-FS, FC-FS-2, FC-FS-3, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-IFR, FC-LS, FC-LS-2, FC-MI, FC-MI-2, FC-MI-3, FC-MSQS, FCP, FCP-2, FCP-3, FCP-4, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-4, FC-PI-5, FC-PLDA, FC-SB-2, FC-SB-3, FC-SB-4, FC-SP, FC-SP-2, FC-SW, FC-SW-2, FC-SW-3, FC-SW-4, FC-SW-5, FC-Tape, FC-VI
Manageable :Yes
Remote Management Protocol :CLI, HTTP, SNMP 3, SSH-2
Features :Access Control List (ACL) support, Auto-sensing per device, Hot swap module replacement, Port Security, Quality of Service (QoS), Registered State Change Notification (RSCN) support, Role based access control, SNMP trap, Syslog support, Virtual Route Redundancy Protocol (VRRP) support
Ports
Qty :48
Interface Provided
Interfaces :48 x 16Gb Fibre Channel SFP+ – SFP+
Miscellaneous
Color Category :Gray
Encryption Algorithm :AES
Authentication Method :DH-CHAP, RADIUS, Secure Shell v.2 (SSH2), TACACS+
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, Directive 2004/108/EC, Directive 2006/95/EC, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1 Second Edition, VCCI Class A
Dimensions & Weight
Width :15.9 inch
Depth :21.8 inch
Height :1.7 inch
Weight :17 lbs
