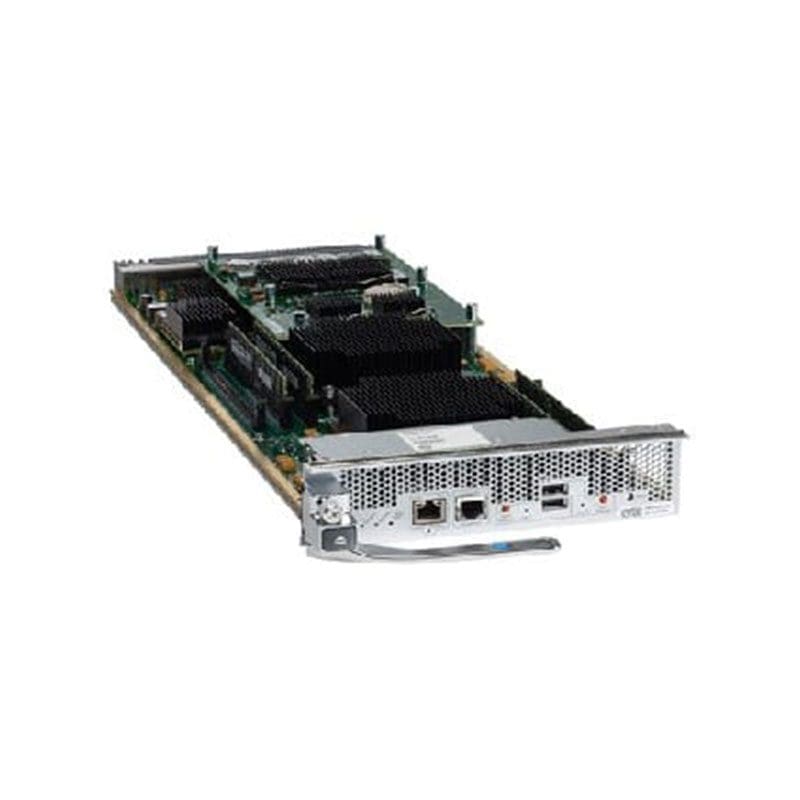

Refurbished DS-X97-SF1E-K9 Technical Specification
Cisco MDS 9700 Series Control Processor
General
Device Type Control processor
Width 7.9 in
Depth 21.9 in
Height 2 in
Weight 8.51 lbs
Processor / Memory / Storage
Processors Installed 1 x Intel Xeon 2.13 GHz
RAM 32 GB DDR3 SDRAM
Networking
Form Factor Plug-in module
Connectivity Technology Wired
Data Link Protocol Fibre Channel
Fibre Channel FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6, FC-SB-5
Network / Transport Protocol SFTP
Routing Protocol VRRP
Remote Management Protocol SNMP 3, SSH-2
Performance Switching bandwidth (Fibre Channel): up to 48 Tbps
Status Indicators Power, system, active, USB
Features Load balancing, Syslog support, manageable, Access Control List (ACL) support, Quality of Service (QoS), reset button, Remote Switch Port Analyzer (RSPAN), Registered State Change Notification (RSCN) support, Call Home function support, Class of Service (CoS), Automated Attendant (IVR), Fabric Configuration Server (FCS), Role-Based Access Control (RBAC), TrustSec support, N-Port ID virtualization, Real-Time Protocol (RTP) debug
Encryption Algorithm AES
Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Expansion / Connectivity
Interfaces 1 x RS-232 – RJ-45 | 1 x 1000Base-T (management) – RJ-45 | 2 x USB 2.0
Miscellaneous
Compliant Standards CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, EN 61000-6-1, AS/NZS 3260, ICES-003 Class A, EN 60825, AS/NZS 3548 Class A, IEC 60825, CAN/CSA C22.2 No. 60950, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, 21 CFR 1040
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
Compatibility Information
Designed For Cisco MDS 9706 Crossbar Switching Fabric1 Module, 9706 Multilayer Director, 9710 Base Config, 9710 Crossbar Switching Fabric1 Module, 9710 Enhanced Config, 9710 Multilayer Director, 9718 Chassis, 9718 Crossbar Switching Fabric-1 Module
