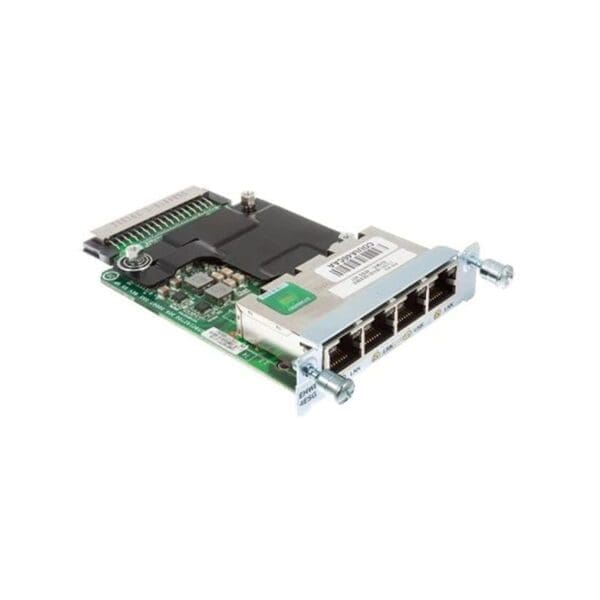

Refurbished EHWIC-4ESG Technical Specification
Cisco Expansion Module
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco
Packaged Quantity :1
Networking
Type :Expansion module
Form Factor :Plug-in module
Interface (Bus) Type :EHWIC
Connectivity Technology :Wired
Cabling Type :Ethernet 1000Base-T, Ethernet 1000Base-X, Ethernet 100Base-TX, Ethernet 10Base-T
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol :RMON, SNMP
Data Transfer Rate :1 GBps
Features :Access Control List (ACL) support, Cisco Gigabit EtherChannel, Committed Access Rate (CAR), Flow control, Jumbo Frames support, MAC address filtering, Quality of Service (QoS), VLAN support, Weighted Random Early Detection (WRED)
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Expansion Slots
Expansion Slots :1 x SFP
Interface Provided
Interfaces :1 x 1000Base-T – RJ-45
Miscellaneous
Refurbished :Refurbished
Compliant Standards :EN 300 386, EN 61000-3-2, EN 61000-3-3, EN300-386, EN55022 Class A, FCC Part 15 A, ICES-003 Class A, VCCI Class A ITE
Dimensions & Weight
Width :3.1 inch
Depth :4.8 inch
Height :0.8 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
