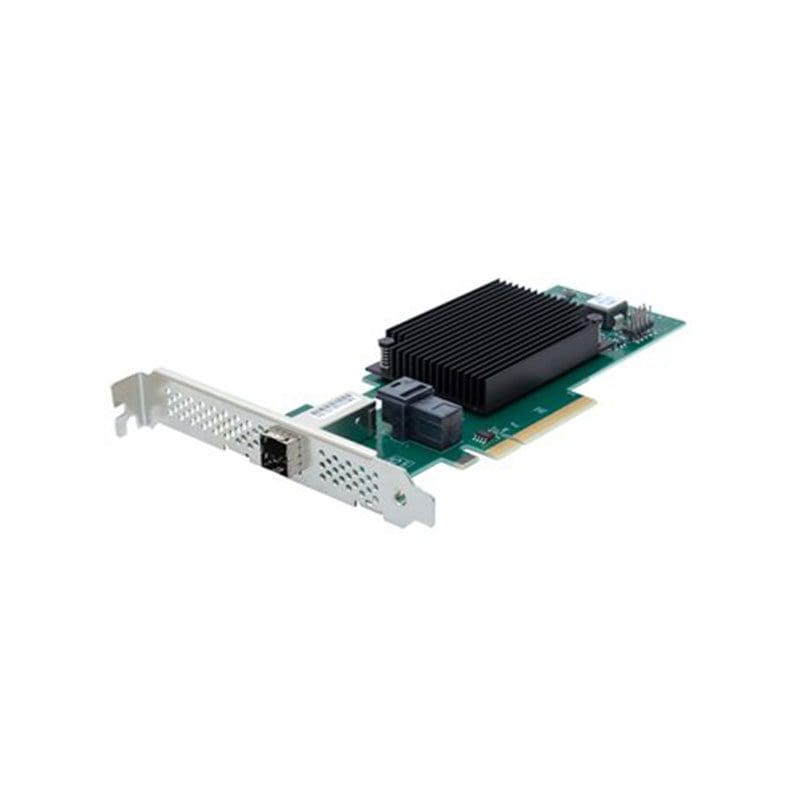

ESAH-1244-GT0 Technical Specifications
ATTO ExpressSAS H1244GT Storage Controller (RAID) SATA 6Gb/s / SAS 12Gb/s PCIe 4.0 x8
Brand : ATTO
Manufacturer Part Number : ESAH-1244-GT0
Interface SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate 12 Gbit/s
Supported Devices Disk array (RAID)
Channel Qty 8
Max Storage Devices Qty 2048
RAID Level RAID 0, RAID 1, RAID 10, RAID 1E
General
Device Type Storage controller (RAID) – plug-in card – low profile
Host Bus PCIe 4.0 x8
Expansion / Connectivity
Interfaces 1 x SATA 6Gb/s / SAS 12Gb/s – 4 x Mini SAS HD (SFF-8644) (external) ¦ 1 x SATA 6Gb/s / SAS 12Gb/s – 4 x Mini SAS HD (SFF-8643) (internal)
