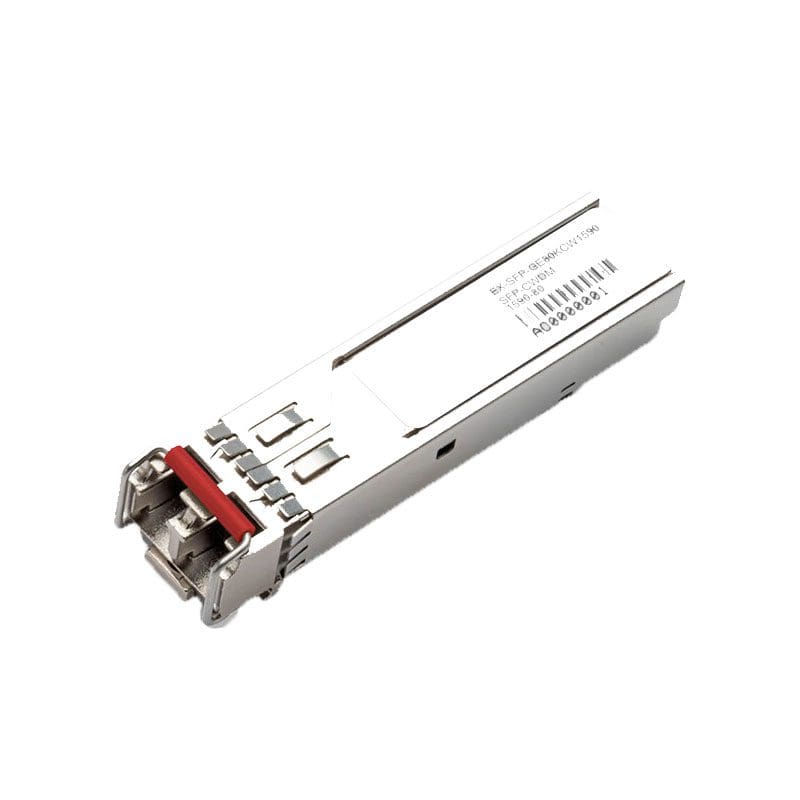

EX-SFP-GE80KCW1590 Juniper Network SFP (mini-GBIC) Module

EX-SFP-GE80KCW1590 Technical Specifications

Juniper Network SFP (mini-GBIC) Module

Brand Name: Juniper
Product Name: SFP (mini-GBIC) Module
Product Type: SFP (mini-GBIC)
Technical Information
Application/Usage Data Networking, Optical Network
Interfaces/Ports
Interfaces/Ports Details: 1 x LC Simplex 1000Base-LX Network
Media & Performance
Media Type: Supported Optical Fiber
Fiber Optic Cable Standard: 9/125 µm
Fiber Mode Supported: Single-mode
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-LX
Maximum Data Transfer Rate: 1
Signaling rate, each lane: 1000 Mbps
Transmitter fibers: Single
Transmitter wavelengths (range): 1590 nm
Transmitter output power, each lane (minimum):  dBm
Receiver input power, each lane (minimum): –32 dBm
Cable type: SMF
Core size/cladding: 9/125 µm
Distance: 80 km
Maximum Power consumption (W): 1 W
Operating Temperature (range): 0° C to 70° C
Storage temperature: –40° C to 85° C
