Refurbished EX4200-24T-DC Technical Specifications

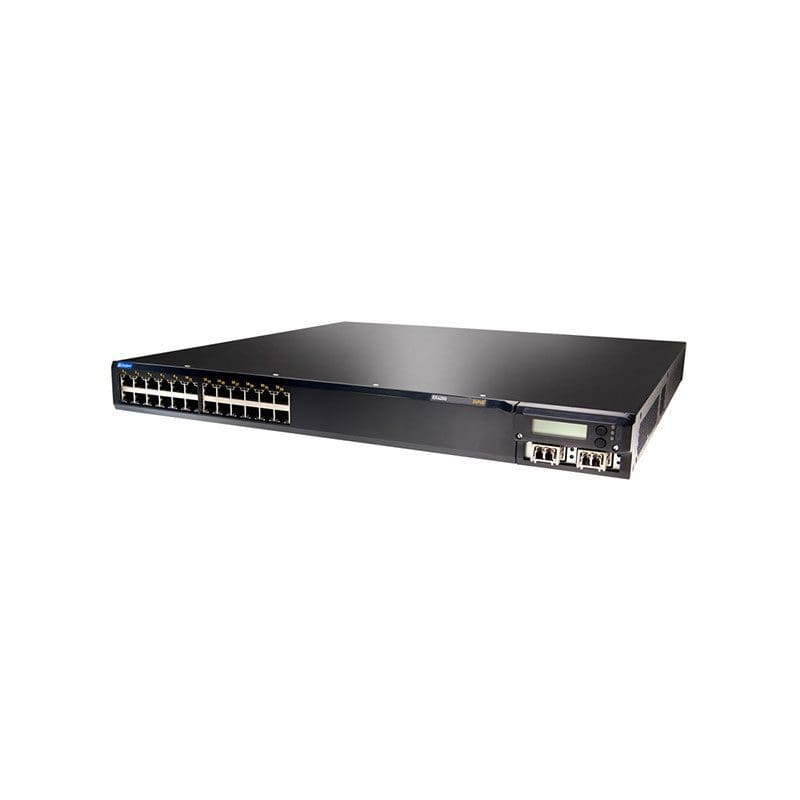

Juniper Networks EX 4200 24T switch 24 ports managed
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX 4200
Model :24T
Packaged Quantity :1
Chassis
Built-in Devices :Status LCD
Processor
Type :PowerPC
Clock Speed :1 GHZ
RAM
Installed Size :1 GB
Flash Memory
Installed Size :1 GB, 1 GB
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :Desktop
Stackable :Stackable
Max Units In A Stack :10
Ports Qty :24
Advanced Switching :Layer 3
Routing Protocol :IGMPv2, Policy-based routing (PBR), VRRP, RIP-1, Static IP routing, OSPF, IGMP, RIP-2, PIM-SM, BGP, IGMPv3, IS-IS
MAC Address Table Size :24K entries
Manageable :Yes
Remote Management Protocol :SNMP 3, RMON 9, SNMP 2, RMON 1, HTTPS, SNMP 1, RMON, HTTP, RMON 3, RMON 2, SSH-2
Status Indicators :LCD display
Features :DHCP proxy, 256-bit encryption, Dynamic ARP Inspection (DAI), Virtual Chassis technology, Time Domain Reflectometry (TDR), Syslog support, Auto-uplink (auto MDI/MDI-X), IGMP snooping, High Availability, Power over Ethernet (PoE), Layer 2 switching, IPv6 support, Routing, Quality of Service (QoS), Redundant trunk group (RTG), DHCP snooping, Non-Stop Bridging (NSB), MPLS support, Graceful Route Engine Switchover (GRES), Hot swap module replacement, Temperature sensor, DoS attack prevention, DHCP server, VLAN support, Jumbo Frames support, Non-Stop Routing (NSR), ARP support, Store and forward, Layer 3 switching, DHCP support, RADIUS support
Compliant Standards :IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1D, IEEE 802.1ab (LLDP), IEEE 802.1s, IEEE 802.1x, IEEE 802.3ad (LACP)
Ports
Qty :24
Type :10/100/1000
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces :1 x management, 24 x 10Base-T/100Base-TX/1000Base-T – RJ-45, 1 x network stack device
Software
Type :Juniper NetScreen-Security Manager
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :DC 36 – 72 V
Power Consumption Operational :190 watt
Miscellaneous
Height (Rack Units) :1
Encryption Algorithm :TLS, PEAP, MD5, TTLS
Authentication Method :TACACS+, Extensible Authentication Protocol (EAP), Secure Shell v.2 (SSH2), RADIUS
Compliant Standards :TUV GS, EN300-386, EN 60950-1, UL 60950-1, VCCI Class A ITE, IEC 60950-1, CISPR 22 Class A, EN55022 Class A, cUL, ICES-003 Class A, RoHS 5/6, CSA 22.2 No. 60950, EN55024, FCC CFR47 Part 15, EN 300 386
Dimensions & Weight
Width :17.4 inch
Depth :16.4 inch
Height :1.7 inch
Weight :16.53 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :113 degree Fahrenheit
Humidity Range Operating :10 – 85%
