Refurbished EX4200-48T-DC Technical Specifications

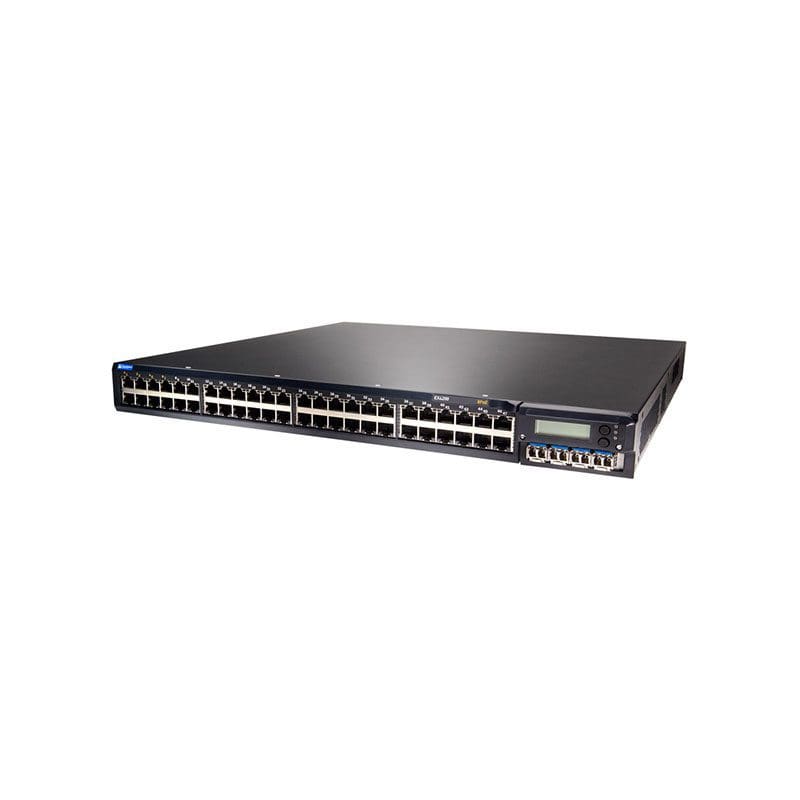

Juniper Networks EX 4200 48T switch 48 ports managed
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX 4200
Model :48T
Packaged Quantity :1
Chassis
Built-in Devices :Status LCD
Processor
Type :PowerPC
Clock Speed :1 GHZ
RAM
Installed Size :1 GB
Flash Memory
Installed Size :1 GB, 1 GB
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :Desktop
Stackable :Stackable
Max Units In A Stack :10
Ports Qty :48
Advanced Switching :Layer 3
Routing Protocol :RIP-2, VRRP, IS-IS, Policy-based routing (PBR), IGMPv2, BGP, IGMP, OSPF, Static IP routing, PIM-SM, IGMPv3, RIP-1
MAC Address Table Size :24K entries
Manageable :Yes
Remote Management Protocol :RMON 1, SNMP 1, SNMP 2, HTTP, SNMP 3, HTTPS, RMON 2, SSH-2, RMON, RMON 3, RMON 9
Status Indicators :LCD display
Features :DHCP support, Syslog support, Jumbo Frames support, DHCP snooping, IGMP snooping, DoS attack prevention, 256-bit encryption, IPv6 support, Time Domain Reflectometry (TDR), Hot swap module replacement, Virtual Chassis technology, VLAN support, DHCP proxy, ARP support, Power over Ethernet (PoE), Dynamic ARP Inspection (DAI), Store and forward, RADIUS support, Layer 3 switching, Routing, DHCP server, Auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), Temperature sensor, Non-Stop Bridging (NSB), High Availability, MPLS support, Redundant trunk group (RTG), Non-Stop Routing (NSR), Layer 2 switching, Graceful Route Engine Switchover (GRES)
Compliant Standards :IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1x, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP)
Ports
Qty :48
Type :10/100/1000
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces :1 x network stack device, 8 x 10Base-T/100Base-TX/1000Base-T – RJ-45 PoE, 40 x 10Base-T/100Base-TX/1000Base-T – RJ-45, 1 x management
Software
Type :Juniper NetScreen-Security Manager
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :1
Max Supported Qty :2
Power Consumption Operational :190 watt
Miscellaneous
Height (Rack Units) :1
Encryption Algorithm :TTLS, PEAP, TLS, MD5
Authentication Method :RADIUS, Extensible Authentication Protocol (EAP), TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards :IEC 60950-1, EN55022 Class A, EN55024, VCCI Class A ITE, EN 60950-1, UL 60950-1, CISPR 22 Class A, CSA 22.2 No. 60950, ICES-003 Class A, cUL, TUV GS, RoHS 5/6, EN300-386, FCC CFR47 Part 15, EN 300 386
Dimensions & Weight
Width :17.4 inch
Depth :16.4 inch
Height :1.7 inch
Weight :17.2 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :113 degree Fahrenheit
Humidity Range Operating :10 – 85%
