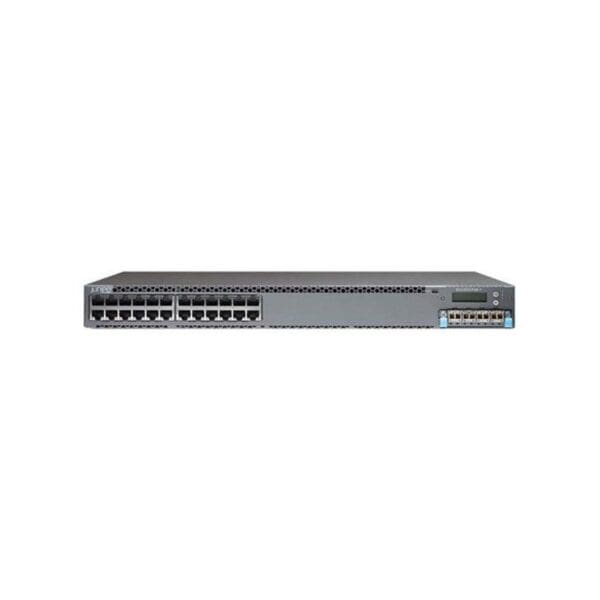

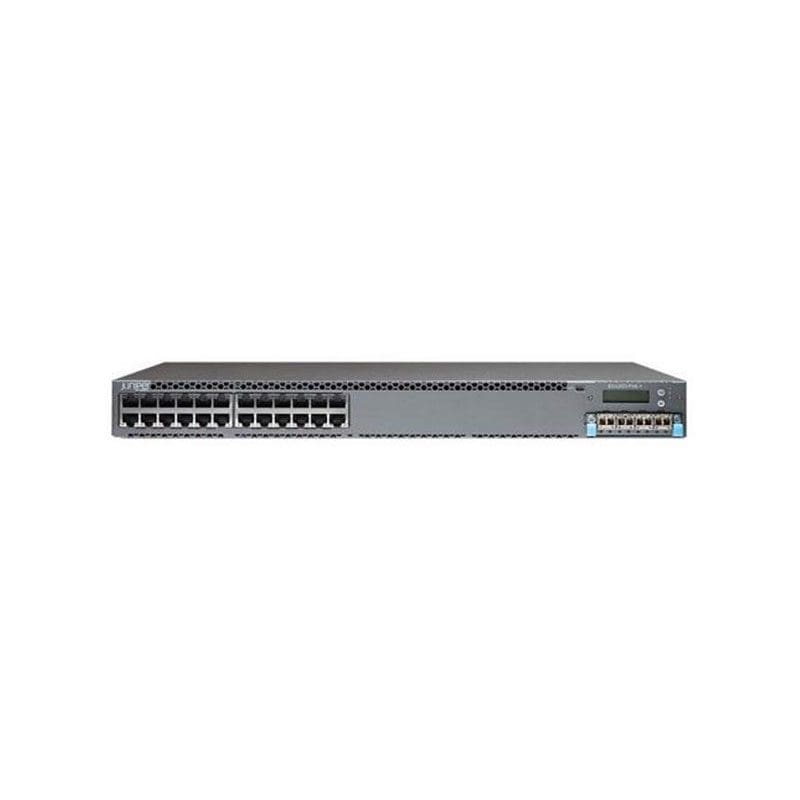

EX4300-24P-S Juniper Layer 3 Switch

EX4300-24P-S Overview

The Juniper Networks EX4300 line of Ethernet switches with Virtual Chassis technology delivers the highperformance networking solution that high-performance businesses demand. Combining the compact, pay-as-you-grow economics and low power and cooling requirements of stackable switches with the performance, availability, and port densities of chassis-based platforms, the EX4300 enables businesses to deploy innovative new technologies that increase revenue and improve productivity.

$2,611

Buy Now
Availability: In Stock
SKU:EX4300-24P-S
Brand:

EX4300-24P-S Technical Specifications

Juniper EX4300-24P-S Layer 3 Switch

General Information
Manufacturer Juniper Networks, Inc
Manufacturer Part Number EX4300-24P-S
Product Series EX4300
Product Name EX4300-24P-S Layer 3 Switch
Product Type Layer 3 Switch
Technical Information
Interfaces/Ports
Total Number of Network Ports 24
Token Ring Port No
LRE Port No
Bypass No
Modular No
Management Port Yes
USB No
Number of PoE+ (RJ-45) Ports 24
Stack Port No
Port/Expansion Slot Details 24 x Gigabit Ethernet Network
Media & Performance
Media Type Supported Twisted Pair
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots 1
Expansion Slot Type Uplink Module
Shared SFP Slot No
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Management
VLAN
QoS
Web-based Management
SNMP v1, v2c, v3
RMON (RFC 2819) Groups 1, 2, 3, 9
DHCP
Telnet
MIB
Command Line Interface (CLI)
Memory
Standard Memory 2 GB
Memory Technology DRAM
Flash Memory 2 GB
Power Description
PoE (RJ-45) Port No
Input Voltage 120 V AC, 230 V AC
Power Source Power Supply
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable, Desktop
Height 1.7″
Width 17.4″
Depth 16.4″
Miscellaneous
Certifications & Standards IEEE Standards:
802.1p
802.1Q
802.1X
802.1ak
802.3
802.3u
802.3ab
802.3z
802.3ae
802.3ba
802.3af
802.3at
802.3x
802.3ah
Safety Certifications:
UL-UL60950-1
C-UL to CAN/CSA 22.2 No. 60950-1
TUV/GS to EN 60950-1, Amendment A1-A4, A11
EN 60950-1 (2006 +A1:2009+A12:2010)
IEC 60950-1 (2005 +A1:2009)
Electromagnetic Compatibility Certifications:
FCC 47CFR Part 15 Class A
EN 55022 Class A
ICES-003 Class A
VCCI Class A
AS/NZS CISPR 22 Class A
CISPR 22 Class A
EN 55024
EN 300386
CE
Environmentally Friendly Yes
Environmental Certification RoHS-6
