Refurbished EX4300-48T-S Technical Specifications

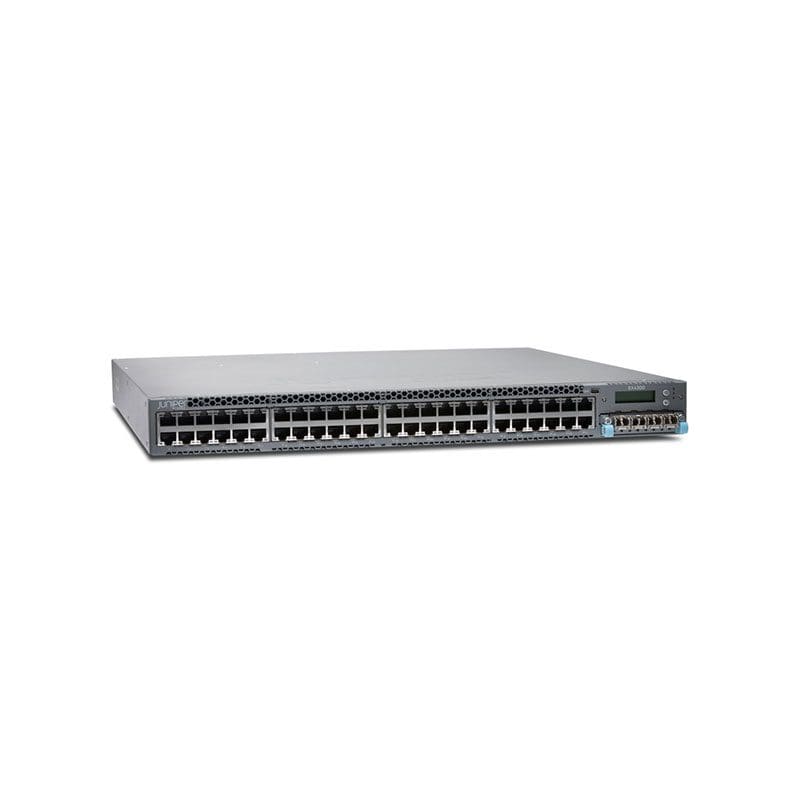

Juniper Networks EX Series EX4300-48T switch 48 ports managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :EX4300-48T
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Built-in Devices :Status LCD
Installed Devices / Modules Qty :0
Supported Devices / Modules Qty :1
Processor
Type :PowerPC
Installed Qty :1
Clock Speed :1.5 GHZ
RAM
Installed Size :2 GB
Flash Memory
Installed Size :2 GB, 2 GB
Performance
Performance :Throughput: 369 Mpps, Switching capacity: 496 Gbps
Capacity
Capacity :Multiple Spanning Tree Protocol instances: 64, IPv4 routes (Multicast): 16000, VLAN Spanning Tree Protocol instances: 510, Virtual interfaces (VLANs): 4093, IPv6 routes (Unicast): 15000, ARP entries: 64000, IPv4 routes (Unicast): 32000, IPv6 routes (Multicast): 16000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :Rack-mountable
Stackable :Stackable
Max Units In A Stack :10
Ports Qty :48
Advanced Switching :Layer 3
Routing Protocol :Static IPv4 routing, RIPng, BGP for IPv6, VRRPv3, Bidirectional Forwarding Detection (BFD), RIP-1, VRRP, OSPF, MPLS, CIDR, MLD, MSDP, RIP-2, Static IPv6 routing, OSPFv3, OSPFv2
MAC Address Table Size :64K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :CLI, RMON 9, SSH, SNMP 1, TFTP, RMON 1, SNMP 2c, RMON 3, HTTPS, HTTP, RMON 2, Telnet, SNMP 3
Status Indicators :LCD display
Features :Temperature sensor, Uplink Failure Detection (UFD), Strict Priority (SP), DDos attack prevention, Flow control, Internet Control Message Protocol (ICMP), Auto-uplink (auto MDI/MDI-X), Tagged VLAN, Time Domain Reflectometry (TDR), Non-Stop Routing (NSR), RARP support, Class of Service (CoS), Secure Copy (SCP), Redundant trunk group (RTG), Per-VLAN Spanning Tree Plus (PVST+), Non-Stop Bridging (NSB), Multicast Source Discovery Protocol (MSDP), Access Control List (ACL) support, Graceful Route Engine Switchover (GRES), Virtual Chassis technology, ICMP Router Discovery Protocol (IRDP), Port mirroring, Rapid Spanning Tree Protocol (RSTP) support, NTP time synchronization, Dynamic ARP Inspection (DAI), Management Information Base (MIB), ARP support, Energy Efficient Ethernet, IP source guard, Captive Portal, DHCP proxy, Neighbor Discovery Protocol (NDP), Front to back airflow, Redundant hot swappable fans, sFlow, BOOTP support, Quality of Service (QoS), Spanning Tree Protocol (STP) support, DHCP relay, MACsec support, SNTP support, DHCP server, Multiple Spanning Tree Protocol (MSTP) support, DoS attack prevention, IGMP snooping, VLAN Spanning Tree Protocol (VSTP), DHCP snooping, Deficit Weighted Round Robin (DWRR), DHCP client, DiffServ Code Point (DSCP) support, Weighted Random Early Detection (WRED), Store and forward, MLD snooping
Compliant Standards :IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ba, IEEE 802.1Q, ITU-T G.8032, IEEE 802.3u, IEEE 802.3ad (LACP), IEEE 802.3z, IEEE 802.3, IEEE 802.3x, IEEE 802.1D, IEEE 802.3az, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.3ah, IEEE 802.1ak, IEEE 802.1ae, IEEE 802.1ab (LLDP)
Ports
Qty :48
Type :10/100/1000
Ports (2nd)
Qty :4
Type :40 Gigabit QSFP+
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces :48 x 1000Base-T RJ-45, 4 x QSFP+
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Installed Qty :0
Max Supported Qty :2
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :PEAP, TTLS, MD5, TLS
Authentication Method :RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Compliant Standards :RoHS 6/6, GR-1089-CORE, EN 55022 Class A, FCC CFR47 Part 15 A, ISO 7779, VCCI Class A, UL 60950-1, EN55024, CISPR 22 Class A, EN 60950-1, CAN/CSA C22.2 No. 60950-1, cUL, IEC 60950-1, ICES-003 Class A, TUV GS, EN 300386, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.4 inch
Depth :16.4 inch
Height :1.7 inch
Weight :16.09 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :113 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :10 – 85% (non-condensing)
Humidity Range Storage :0 – 95% (non-condensing)
