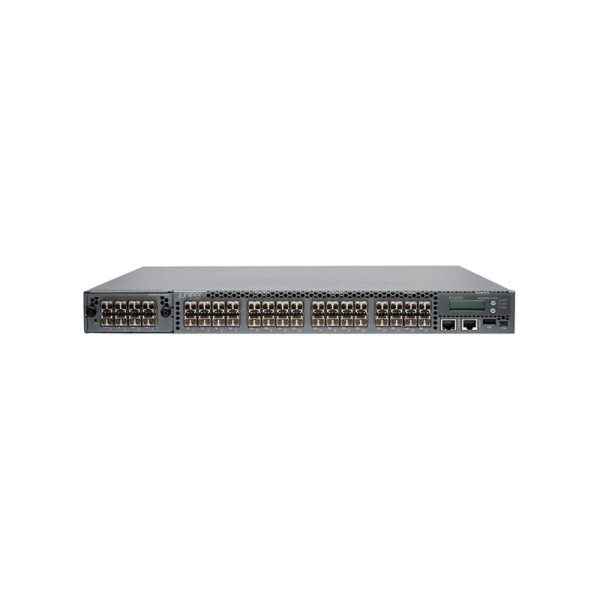

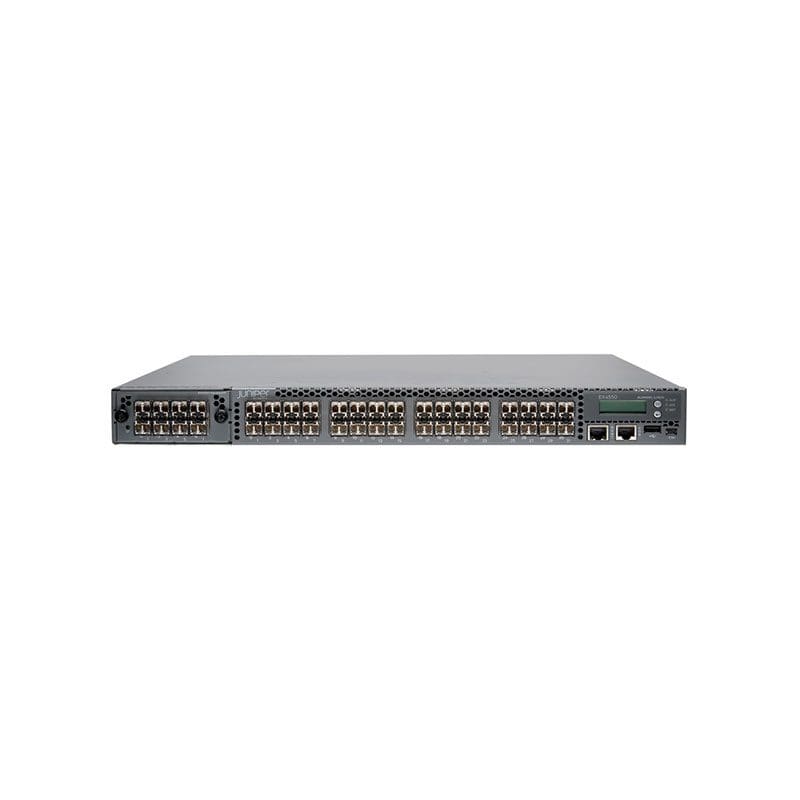

EX4550-32F-AFO, Juniper EX4550, 32 Port 1/10GbE SFP

EX4550-32F-AFO Overview

Featuring up to 48 wire-speed 1GbE or 10GbE small form-factor pluggable transceiver (SFP/SFP+) or 100M/1GBASE-T/10GBASE-T ports in a compact one rack unit (1 U) platform, the Juniper Networks® EX4550 Ethernet Switch delivers 480 Gbps of Layer 2 and Layer 3 connectivity to networked devices such as servers and other switches. Two versions of the EX4550 base switch are available: the EX4550-32F, a fiber-based version that provides 32 fixed 10GbE SFP/SFP+ pluggable ports; and the EX4550-32T, a copper-based version that supports 32 fixed 100M/1GBASE-T/10GBASE-T ports.
Both versions feature two expansion slots, one in front and one in back, that can accommodate one of four optional expansion modules, providing tremendous configuration and deployment flexibility for campus and data center access and aggregation networks.

$12,989.00

EX4550-32F-AFO Technical Specifications

Juniper EX4550 32 Port 1/10GbE SFP Converged Switch Manageable 34 x Expansion Slots

General Information:
Brand Name: Juniper
Manufacturer Part Number: Ex4550-32f-Afo
Manufacturer: Juniper Networks, Inc
Product Name: Ex4550 32-Port 1/10gbe Sfp+ Converged Switch
Product Type: Layer 3 Switch
Technical Information:
Physical Characteristics :
Depth: 18.5
Form Factor: Rack-Mountable
Height: 1.7
Weight (Approximate): 19.40 Lb
Width: 17.4
I/O Expansions :
Expansion Slot Type: Sfp+
Number Of Sfp+ Slots: 32
Number Of Total Expansion Slots: 34
Interfaces/Ports :
Bypass: No
Ethernet Technology: 10 Gigabit Ethernet
Lre Port: No
Management Port: Yes
Poe (Rj-45) Port: No
Stack Port: No
Token Ring Port: No
Management & Protocols:
Manageable: Yes
Management:
Qos
Vlan
Snmp V1, V3
Rmon
Media & Performance:
Ethernet Technology: 10 Gigabit Ethernet
Memory:
Flash Memory: 2 Gb
Memory Technology: Dram
Standard Memory: 2 Gb
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Layer Supported: 3
Network & Communication
Poe (Rj-45) Port: No
Redundant Power Supply: Yes
