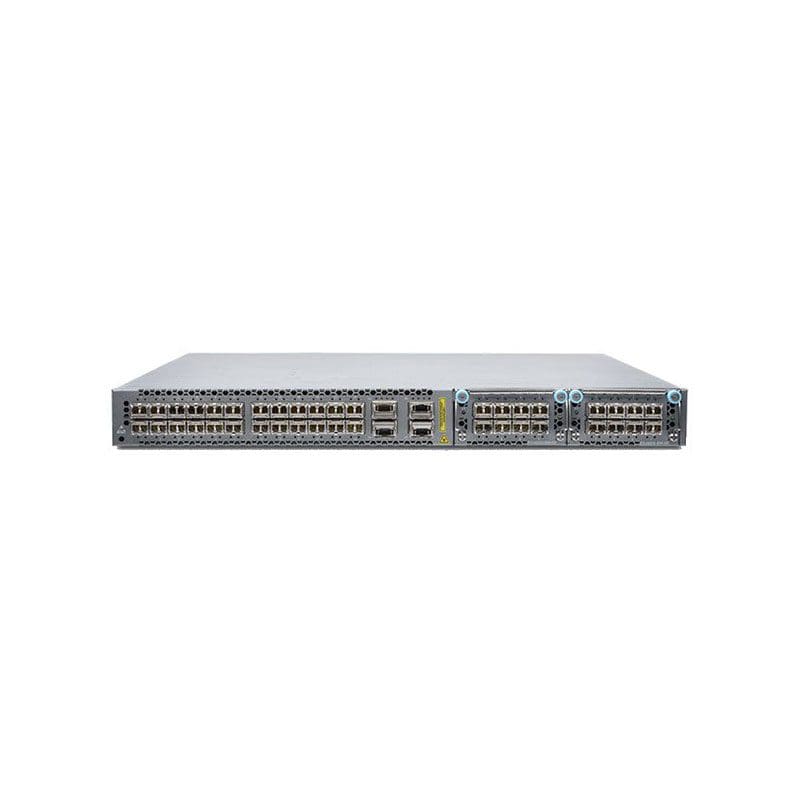

EX4600-40F-S Juniper Networks EX Series EX4600 switch 24 ports
EX4600-40F-S Overview
The EX4600 line of Ethernet switches delivers data center class scale, high availability, and high performance to campus distribution deployments. The EX4600 gives the flexibility to also be implemented in data center top-of-rack and service provider aggregation deployments.
$8,135
Buy Now
EX4600-40F-S Technical Specifications
Juniper Networks EX Series EX4600 switch 24 ports managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :EX4600
Packaged Quantity :1
Performance
Performance :Switching capacity: 1.44 Tbps, Switching capacity: 1.07 Bpps
Capacity
Capacity :Virtual interfaces (VLANs): 4091, Firewall policies: 4000, IPv4 hosts: 208000, QoS hardware queues per port: 12, IPv4 routes (Multicast): 104000, IPv6 routes (Multicast): 52000, Multiple Spanning Tree Protocol instances: 64, VLAN Spanning Tree Protocol instances: 253, Maximum member ports per LAG: 32, IPv4 routes (Unicast): 128000, LAG groups: 128, IPv6 routes (Unicast): 64000, ARP entries: 48000, Equal-Cost Multipathing (ECMP) ways: 64
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :24
Fibre Channel :FC-BB-6
Advanced Switching :Layer 3
