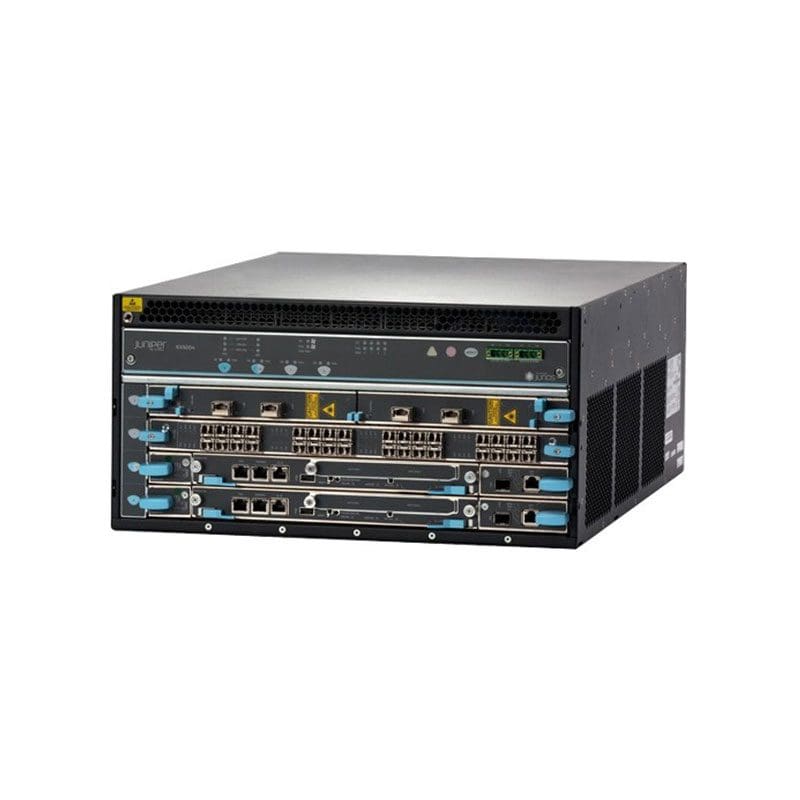

EX9204-REDUND3A-DC Juniper Networks EX Series 9204 switch

EX9204-REDUND3A-DC Technical Specifications

Juniper Networks EX Series 9204 switch managed rack mountable

Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :9204
Packaged Quantity :1
Chassis
Airflow Direction :Side to side airflow
Built-in Devices :2 x 32 GB SSD, Midplane
Installed Devices / Modules Qty :4
Supported Devices / Modules Qty :6
Processor
Installed Qty :1
Manufacturer :Intel
Clock Speed :1.73 GHZ
RAM
Installed Size :16 GB
Performance
Performance :Backplane switching capacity: 1.6 Tbps, Per slot per fabric: 240 Gbps
Capacity
Capacity :ARP entries: 256000, Multicast entries (IPv6): 256000, QoS hardware queues: 8, Virtual interfaces (VLANs): 32000, IPv6 routing table entries: 1000000, Multicast entries (IPv4): 256000, Policies: 16000, IPv4 routing table entries: 1000000
Networking
Type :Switch
Subcategory :Network hubs and switches
Form Factor :Rack-mountable
Advanced Switching :Layer 3
