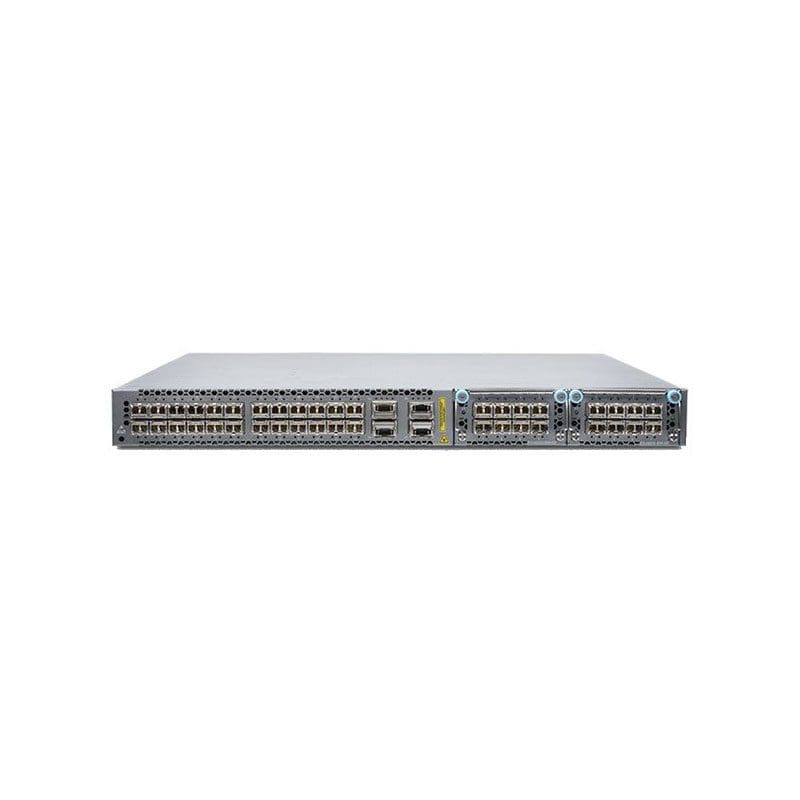

EX4600-40F-AFO Juniper Ethernet Switch 30 X Expansion Slots

EX4600-40F-AFO Overview

The EX4600 line of Ethernet switches delivers data center class scale, high availability, and high performance to campus distribution deployments. The EX4600 offers fixed 10 Gpbs and modular 10 Gpbs and 40 Gbps ports, giving it the flexibility to also be implemented in data center top-of-rack and service provider aggregation deployments.

Featuring up to 72 wire-speed 10GbE small form-factor pluggable and pluggable plus transceiver (SFP/SFP+) ports, and up to 12 wire-speed 40GbE quad SFP+ transceiver (QSFP+) ports in a compact one rack unit (1 U) platform, the Juniper Networks EX4600 Ethernet Switch delivers 1.44 Tbps of Layer 2 and Layer 3 connectivity to networked devices such as secure routers, servers, and other switches. The EX4600 base switch provides 24 fixed 10GbE SFP/SFP+ ports and 4 fixed 40GbE QSFP+ ports. In the base model, 12 of the 24 fixed SFP/SFP+ ports can operate as 1GbE ports, providing the flexibility to support mixed 1GbE and 10GbE environments. A total of four models are available: two featuring AC power supplies and front-to-back or back-to-front airflow; and two featuring DC power supplies and front-to-back or back-to-front airflow. Each model includes dual power supplies.

All versions feature two expansion slots that can accommodate optional expansion modules, providing tremendous configuration and deployment flexibility for enterprise distribution networks. Two expansion modules are available:

  • 8x10GBASE SFP/SFP+ fiber expansion module1
  • 4x40GbE QSFP+ expansion module2


EX4600-40F-AFO Technical Specifications

Juniper Ethernet Switch Manageable 30 X Expansion Slots 10GBASE-X, 40GBASE-X – 24 X SFP Slots -3 Layer Supported

Brand Name: Juniper
Ethernet Technology: 10 Gigabit Ethernet
Ethernet Technology: 40 Gigabit Ethernet
Expansion Slot Type: Qsfp+
Expansion Slot Type: Sfp+
Form Factor: Rack-Mountable
Layer Supported: 3
Manageable: Yes
Network Technology: 10 Gbase-X
Network Technology: 40 Gbase-X
Number Of Total Expansion Slots: 30
Poe (Rj-45) Port: No
Port/Expansion Slot Details: 10 Gigabit Ethernet
Port/Expansion Slot Details: 40 Gigabit Ethernet
Power Source: Power Supply
Product Family: Ex
Product Type: Layer 3 Switch
