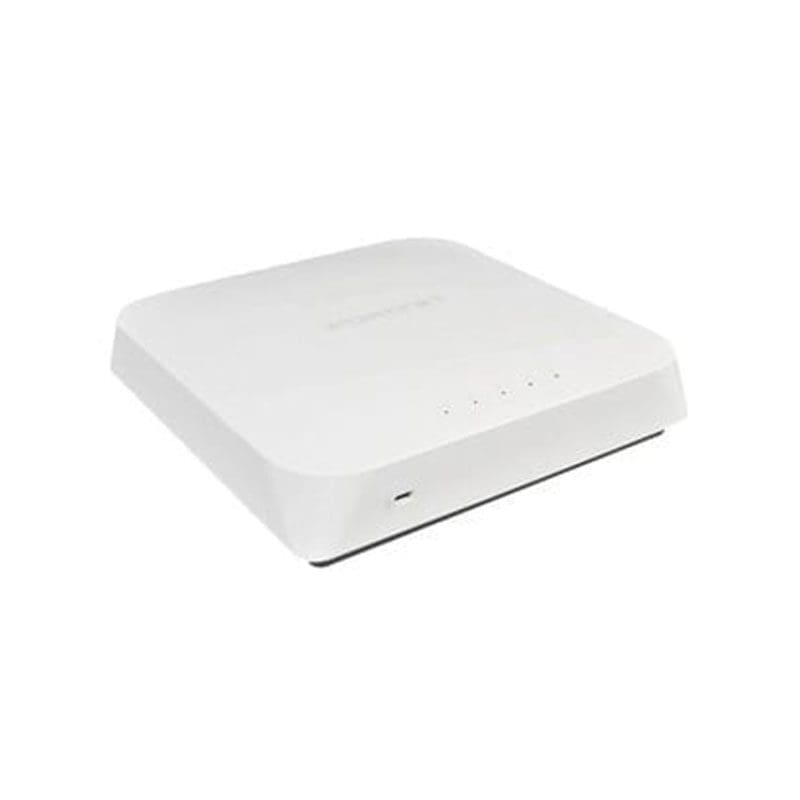

FAP-320C-A Fortinet FortiAP 320C IEEE Wireless Access Point

FAP-320C-A Technical Specifications

Fortinet FortiAP 320C IEEE 802.11ac 1.27 Gbit/s Wireless Access Point

Manufacturer Fortinet, Inc
Manufacturer Part Number FAP-320C-A
Brand Name Fortinet
Product Line FortiAP
Product Model 320C
Product Name FortiAP 320C Wireless Access Point
Product Type Wireless Access Point
Technical Information−
Technical Information
Wireless LAN Standard IEEE 802.11ac
ISM Band Yes
UNII Band Yes
ISM Minimum Frequency 2.40 GHz
ISM Maximum Frequency 2.48 GHz
UNII Minimum Frequency 5.15 GHz
UNII Maximum Frequency 5.85 GHz
Total Number of Antennas 6
Number of Internal Antennas 6
Antenna Gain 5 dBi, 6 dBi
Wireless Transmission Speed 1.27 Gbit/s
Wireless Security
EAP-TLS
EAP-TTLS/MSCHAPv2
EAPv0/EAP-MSCHAPv2
PEAPv1/EAP-GTC EAP-SIM
EAP-AKA
EAP-FAST
WPA
WPA2
IEEE 802.1x or Preshared key
WEP
Web Captive Portal
MAC Blacklist & Whitelist
Features MIMO Technology
Interfaces/Ports
Ethernet Technology Ethernet, Fast Ethernet, Gigabit Ethernet
Number of Network (RJ-45) Ports 2
Network (RJ-11) No
PoE (RJ-45) Port No
VGA No
HDMI No
Audio Line Out No
USB No
Powerline No
Management Port Yes
Power Description
Input Voltage 12 V AC
Physical Characteristics
Form Factor Rail-mountable, Ceiling Mountable, Wall Mountable
Height 1.4″
Width 6.5″
Depth 6.5″
Weight (Approximate) 1.32 lb
Miscellaneous
Certifications & Standards IEEE Standards:
802.3
802.3u
802.3ab
802.11a
802.11b
802.11g
802.11n
802.11ac
802.11e
802.11h
802.11i
802.11j
802.1X
802.3af
Environmentally Friendly Yes
Environmental Certification RoHS
