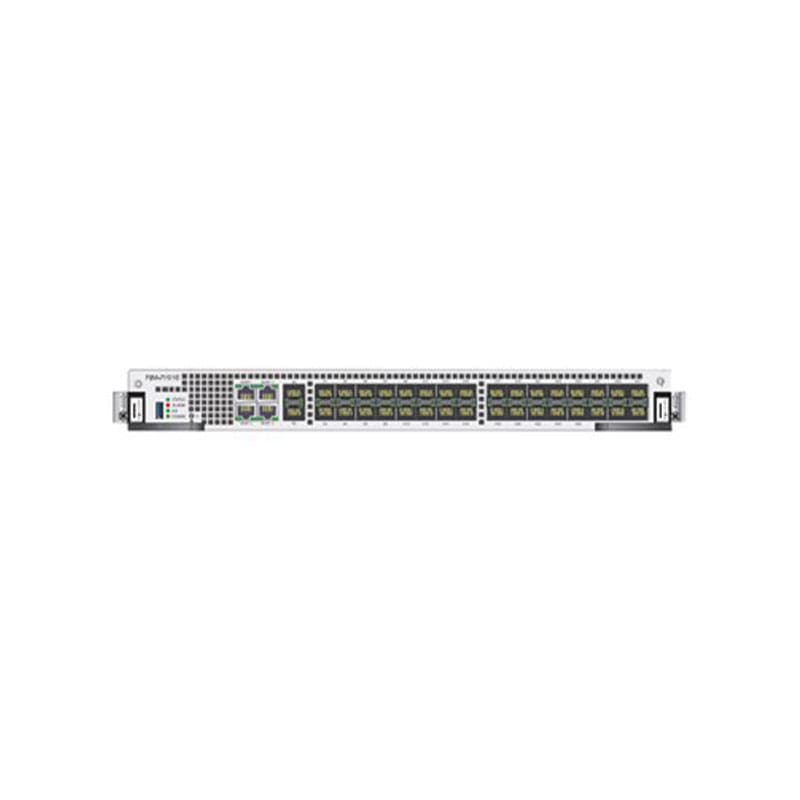

FIM-7901E Technical Specifications
Fortinet Interface Module Expansion module
Brand: Fortinet
Manufacturer: Fortinet
Packaged Quantity: 1
Product Line: Fortinet Interface Module
Connectivity Technology: Wired
Data Link Protocol: 10 Gigabit Ethernet, Gigabit Ethernet
Data Transfer Rate: 10 Gbps
Form Factor: Plug-in module
Status Indicators: Alarm, HA, Power, Status
Type: Expansion module
Interface Provided
Connector Type: 9 pin USB Type A, RJ-45, SFP+
Qty: 1, 2, 32, 4
Type: 1000Base-T (management), 10Gb Ethernet, 1Gb Ethernet/10Gb Ethernet, USB 3.0
Miscellaneous
Color Category: Silver
Included Accessories: 2 x SFP+ SR transceivers
Environmental Parameters
Humidity Range Operating: 10 – 90% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Dimensions & Weight
Depth: 13.8 in
Height: 1.2 in
Weight: 7.12 lbs
Width: 11.3 in
Ports
Qty: 32
Type: Gigabit Ethernet / 10 Gigabit SFP+
