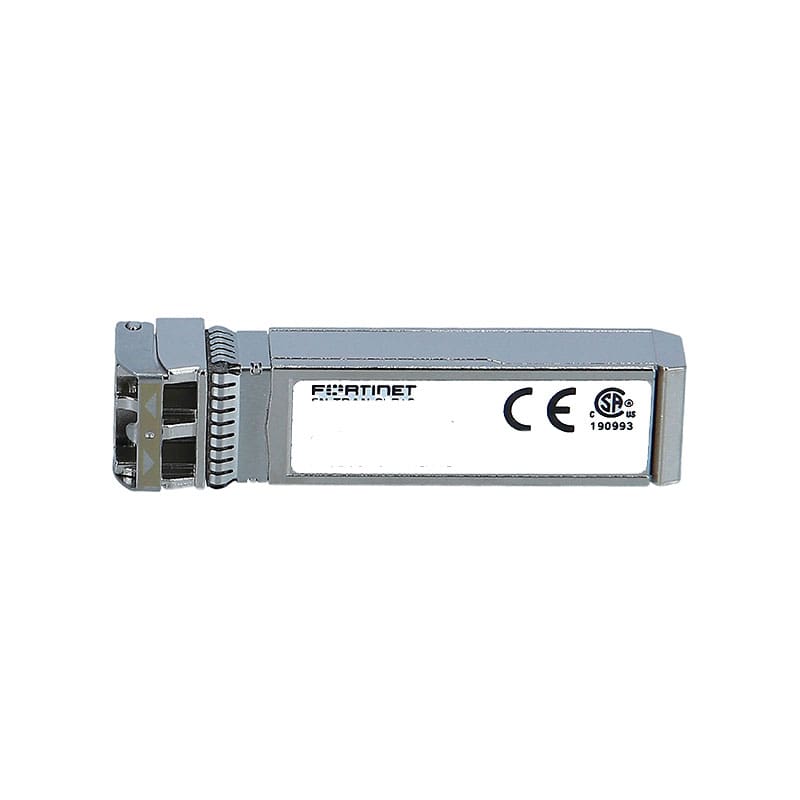

FN-TRAN-LX Fortinet- SFP (mini-GBIC) transceiver module

FN-TRAN-LX Technical Specifications

Fortinet- SFP (mini-GBIC) transceiver module

Brand: Fortinet
Product Line: Fortinet
Model: FN-TRAN-LX
Manufacturer: Fortinet

Network & Communication
Cable Type: Ethernet 1000Base-LX
Compliant Standards: IEEE 802.3z
Connectivity Technology: Wired
Data Link Protocols
Gigabit Ethernet
Data Transfer Rate
1.25 GBps
Features
Auto-negotiation, Hot swappable
Form Factor
Plug-in module
Max Transfer Distance
6.2 miles
Optical Wave Length
1310 nm
Product Type
SFP (mini-GBIC) transceiver module

Connectivity
Interface Provided
1 x Ethernet 1000Base-LX – LC single-mode female x 2

Power
Power Consumption Operational
830 megawatt

Cables
Left Connector SD Type
LC single-mode

Technical Information
Max Operating Temperature
158 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit

Product Information
Packaged Quantity
1

Certifications & Listings
ENERGY STAR Certified
No

Compatibility
Compatibility Specs
Fortinet FortiGate 900G, 901G, 90G, 91G
