FN-TRAN-QSFP+LR FG-TRAN-QSFP+LR Transceiver

FN-TRAN-QSFP+LR Technical Specifications

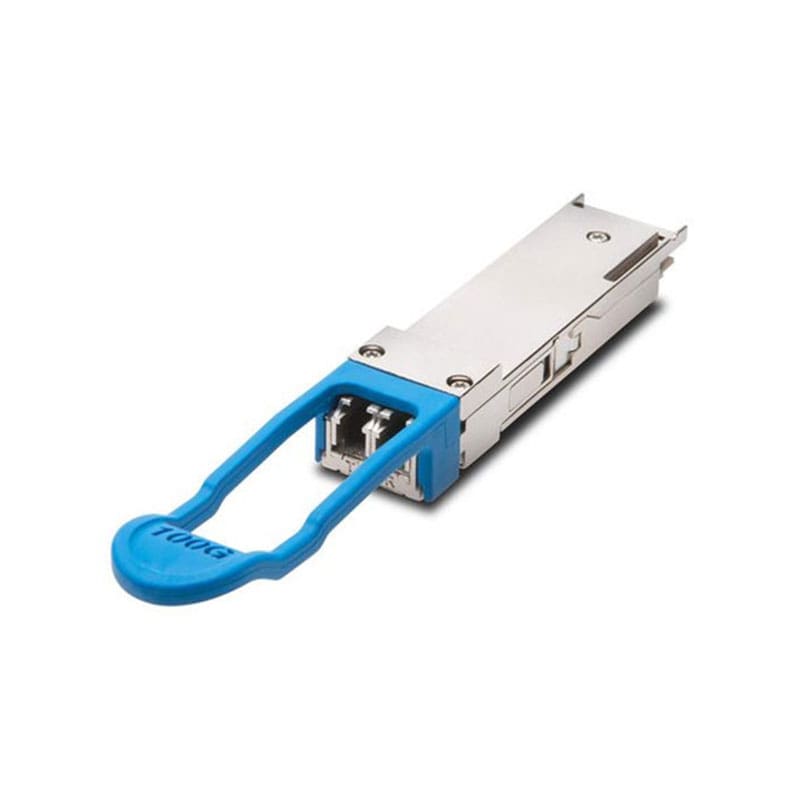

Fortinet FG-TRAN-QSFP+LR Transceiver

Compatible OEM Part Number FN-TRAN-QSFP+LR, FG-TRAN-QSFP+LR Optcore Part Number QSFP-40G-LR4-FTN
Form Factor QSFP+ Data Rate 41.2 Gb/s
Wavelength CWDM 1271,1291,1311,1331nm Fiber Type SMF
Max Distance 10 km Optical Components DFB/PIN
Transmitter Power -7 ~ +2 dBm Extinction ratio > 3.5 dB
Receiver Sensitivity < -11.5 dBm Receiver Overload > 3.3 dBm
Connector LC Duplex Digital Diagnostic Monitoring Yes
Environment Operating: 0°C to 70°C
Storage: -40°C to 85°C Weight 0.09 kg
