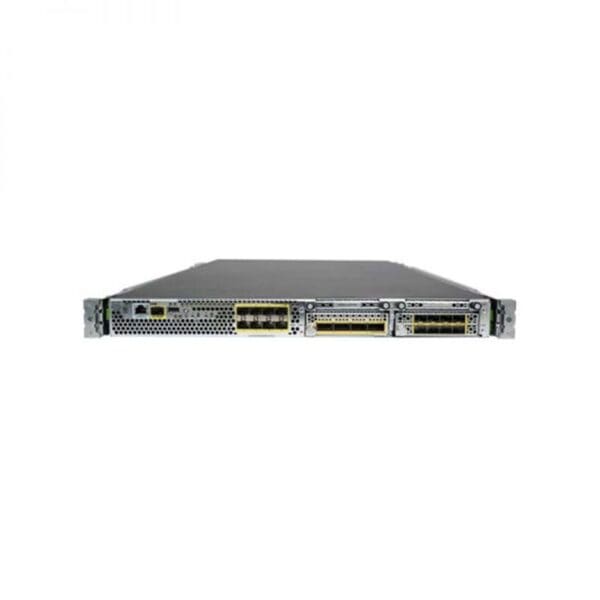

Refurbished FPR4125-NGFW-K9 Cisco FirePOWER Security Appliance

Refurbished FPR4125-NGFW-K9 Technical Specification

Cisco FirePOWER Security Appliance

General
Device Type Security appliance
Height (Rack Units) 1U
Width 16.9 in
Depth 29.7 in
Height 1.7 in
Bundled with 2 x NetMod Bays
Processor / Memory / Storage
Hard Drive 800 GB
Networking
Form Factor Rack-mountable
Connectivity Technology Wired
Performance NGFW throughput: 35 Gbps ¦ Maximum throughput FW + AVC (1024B): 40 Gbps ¦ Maximum throughput FW + AVC + IPS (1024B): 35 Gbps ¦ Maximum throughput FW + AVC (450B): 13 Gbps ¦ Maximum throughput FW + AVC + IPS (450B): 9 Gbps ¦ NGIPS throughput (450B): 15 Gbps ¦ IPSec VPN throughput (1024B TCP w/Fastpath): 14 Gbps ¦ Inspection throughput: 80 Gbps ¦ Multiprotocol firewall throughput: 45 Gbps ¦ IPsec VPN throughput (450B UDP L2L test): 19 Gbps
Capacity New connections per second: 265000 ¦ Concurrent sessions: 25000000 ¦ Concurrent connections: ¦ Latency: 3.5 ¦ Security contexts: 250
Features VLAN support, High Availability, URL filtering, DDos attack prevention, clustering technology, 6 fans, Application Visibility and Control (AVC)
Expansion / Connectivity
Expansion Slots 2 (total) / 0 (free) x expansion slot
Interfaces 8 x 10Gb Ethernet – SFP+ ¦ 4 x 40Gb Ethernet – QSFP+ ¦ 1 x 1000Base-T (management) – SFP (mini-GBIC) ¦ 1 x serial – RJ-45 ¦ 1 x USB 2.0 – Type A
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, VCCI Class A, KN24, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, EN 300 386, TVCN 7317, CAN/CSA-C22.2 No. 60950-1
Power
Power Device Internal power supply – hot-plug
Max Supported Qty 2
Power Redundancy Optional
Voltage Required AC 120/230 V / DC -40 -60 V (50 – 60 Hz)
Power Provided 1100 Watt
