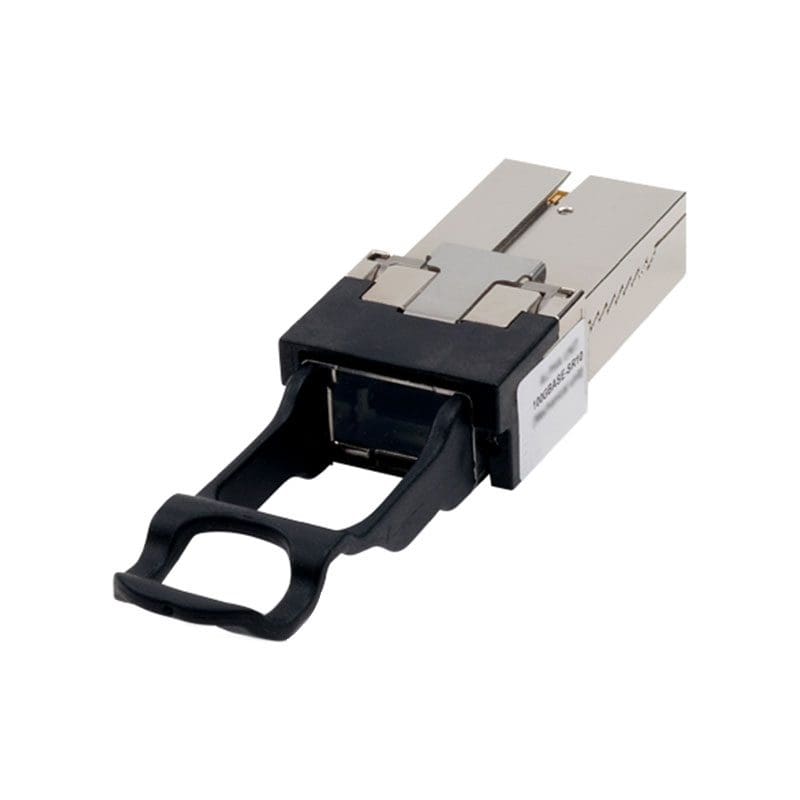

FTLD10CE1C Finisar 100GBASE-SR10 CXP Optical Transceiver Module

FTLD10CE1C Technical Specifications

Finisar 100GBASE-SR10 100m CXP Optical Transceiver Module

Manufacturer: Finisar
12-channel full-duplex transceiver
module
Hot Plug gable CXP form factor
Maximum link length of 100m on
OM3 Multimode Fiber (MMF)
Multirate capability: 1.06Gb/s to
10.5Gb/s per channel 10 Gigabit Ethernet
Unretimed CPPI electrical
interface
Requires 3.3V power supply only
Low power dissipation: < 3.5W
Reliable VCSEL array technology
Built-in digital diagnostic functions
Commercial operating case
temperature range: 0ºC to 70ºC
Single MPO connector receptacle
