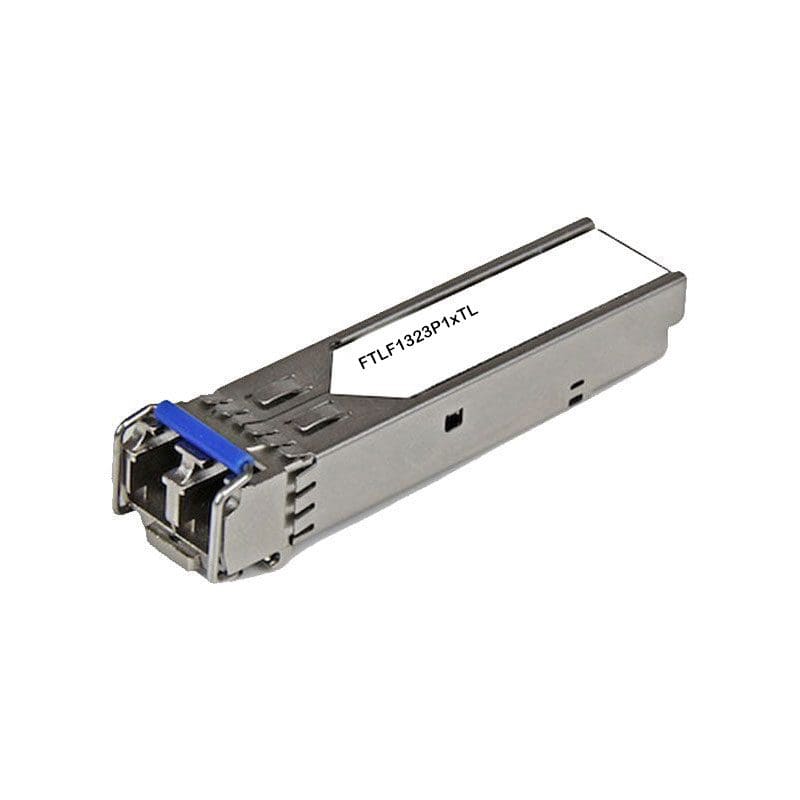

FTLF1323P1xTL Finisar Transceiver Module

FTLF1323P1xTL Technical Specifications

Finisar Transceiver Module

Manufacturer: Finisar
Manufacturer: FINISAR
Description: OC-3 LR-1/STM L-1.1 SFP Optical Transceiver
Applications: SONET OC-3 LR-1 / SDH STM L-1.1
Connections: & Interface Connector: LC Connector
Interface 2-Wire
Data Rate: 155 Mb/s Fast Ethernet
Wavelength: 1260 to 1600 nm
Distance/Reach: 40 km
Output Power: -5 dBm
Fiber Modes: Single Mode Fiber  SMF
Form Factor: SFP
Receiver Sensitivity: -34 to -10 dBm
Power Dissipation: 0.7 W (700 mW)
Tx Power -5 dBm
Tx/Rx Component FP(Tx)
Supply Current: 165 to 300 mA
Supply Voltage: 3.3 V
Temperature
Operating Temperature display: -40 to 85 Degree C
Storage Temperature: -40 to 85 Degree C
