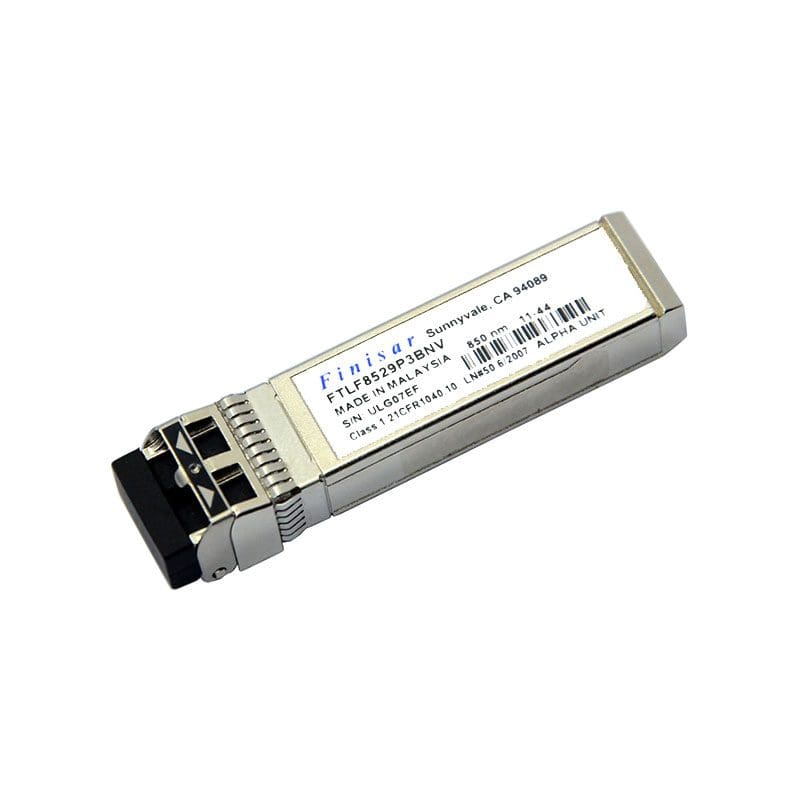

FTLF8529P3BNV Finisar Transceiver Module

FTLF8529P3BNV Technical Specifications

Finisar Transceiver Module

Manufacturer: Finisar
Up to 16 Gb/s bi-directional data links 10 Gigabit Ethernet
Hot plug gable SFP+ footprint
Built-in digital diagnostic functions
Built-in CDR with shut off control
850nm Oxide VCSEL laser transmitter
LC Duplex  connector
35m on 50/125μm MMF
100m on high-bandwidth 50/125um (OM3) MMF
Metal enclosure, for lower EMI
Single 3.3V power supply
Product: Transceivers
Wavelength: 860 nm
Data Rate: 14.025 GBd
Fibre Type: Multimode
Form Factor or Case Style: SFP
Emitting Source: VCSEL
Operating Supply Voltage: 3.15 V to 3.46 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Application: Ethernet
Connector Type: LC
Brand: Coherent
Mounting Style: Snap-In
Product Type: Fiber Optic Transmitters, Receivers, Transceivers
