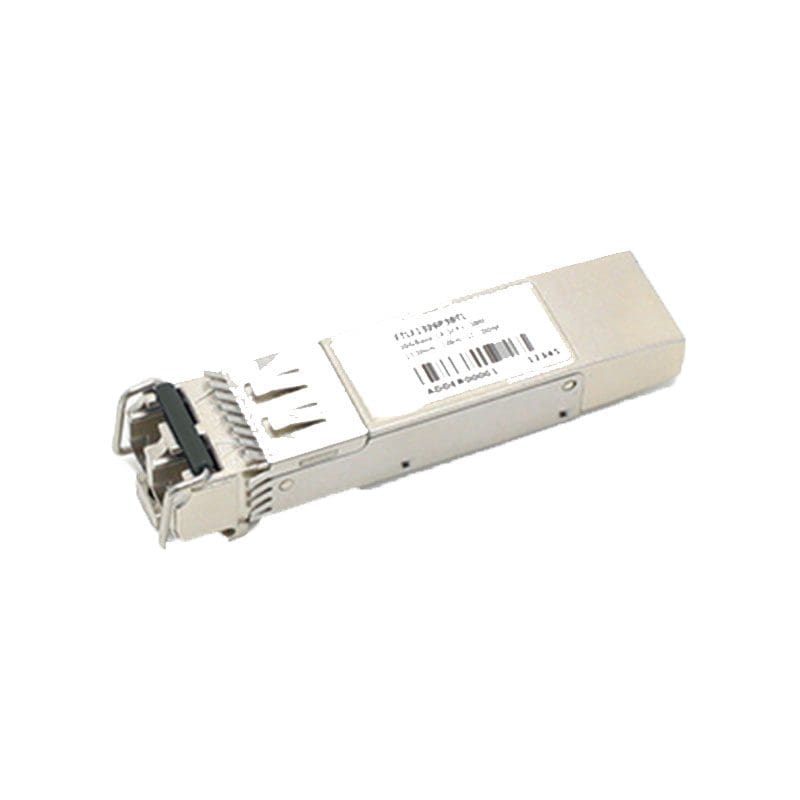

FTLX8573D3BTL Technical Specifications
Finisar Transceiver Module
Manufacturer: Finisar
Hot plug gable SFP+ footprint
Supports 9.95 to 10.5 Gb/s bit rates 10 Gigabit Ethernet
Power dissipation < 1W
Industrial temperature range -40°C to 85°C
Single 3.3Vpower supply
Maximum link length of 400m on 4700 MHZ-km OM4 MMF
Heated 850nm VCSEL laser
Receiver limiting electrical interface
LC Duplex connector
Built-in digital diagnostic functions
Product: Transceivers
Wavelength: 850 nm
Data Rate: 9.95 GBd to 10.5 GBd
Fibre Type: Multimode
Form Factor or Case Style: SFP
Emitting Source: VCSEL
Operating Supply Voltage: 3.14 V to 3.46 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Application: Ethernet
Connector Type: LC
Brand: Coherent
Mounting Style: Snap-In
Product Type: Fiber Optic Transmitters, Receivers, Transceivers
