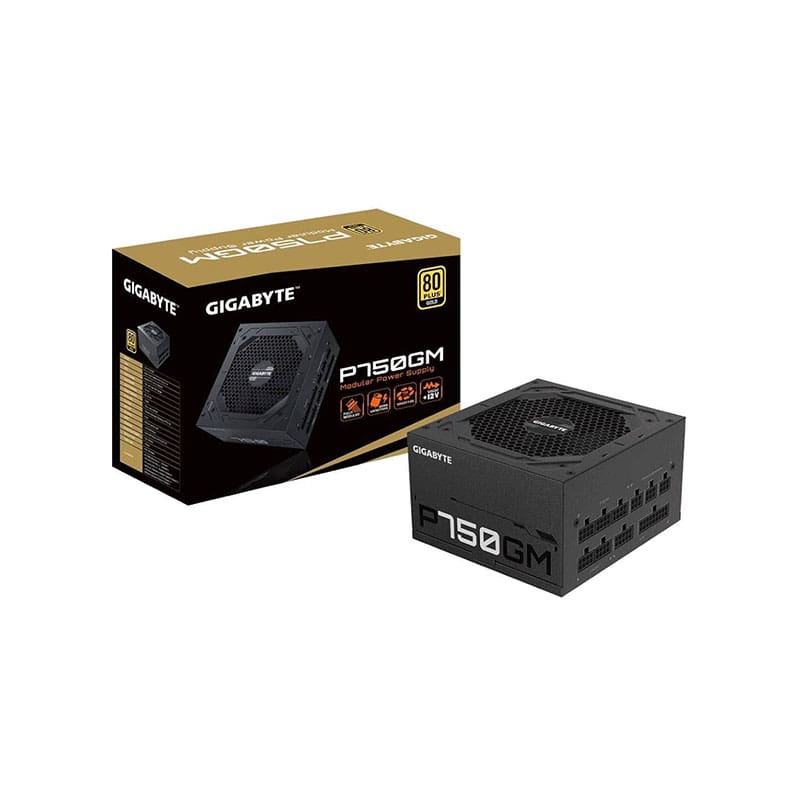

GP-P750GM Gigabyte 750W 80 PLUS Gold Modular Power Supply

GP-P750GM Technical Specifications

Gigabyte 750W 80 PLUS Gold Modular Power Supply

Brand: GIGABYTE
Model: GP-P750GM
Type: ATX 12V v2.31
Maximum Power: 750 W
Fans: 120mm Hydraulic Bearing (HYB)Fan
PFC: Active
Main Connector: 20+4Pin
PCI-Express Connector: 4 x 6+2-Pin
SATA Power Connector: 8
Modular: Full Modular
Power Good Signal: 100-500ms
Hold-up Time: 16ms min.

Efficiency: 90% at typical load
Energy-Efficient: 80 PLUS GOLD Certified
Over Voltage Protection: Yes
Protection: OVP / OPP / SCP / UVP / OCP / OTP
Input Voltage: 100 – 240 V
Input Frequency Range: 50/60 Hz
Input Current: 12 – 6 A
Output: +3.3V@20A, +5V@20A, +12V@61A, [email protected], +5VSB@3A
MTBF: >100,000 Hours
Approvals: BSMI / CE / CCC / FCC / TUV / RCM / CB / EAC / KCC / UL
Max PSU Length: 140 mm
