GV-R56XTGAMING OC-6GD REV2.0 Gigabyte Radeon

GV-R56XTGAMING OC-6GD REV2.0 Technical Specifications

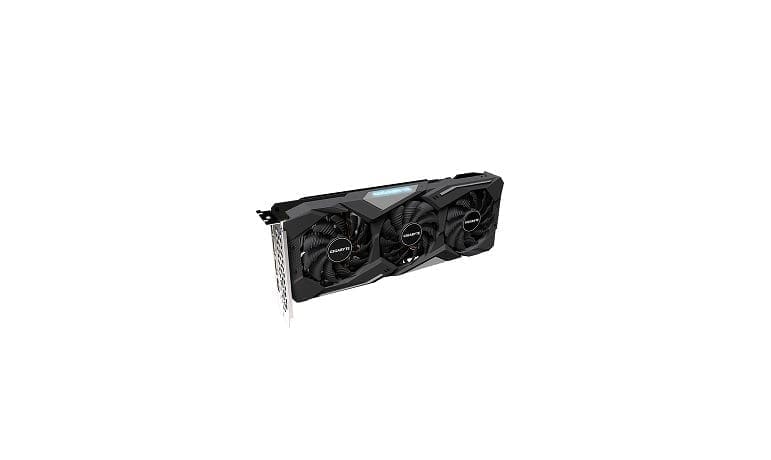

Gigabyte Radeon RX 5600 XT GAMING OC (Rev. 2.0) Graphics Card

GPU
GPU Model AMD Radeon RX 5600 XT
Stream Processors 2304
Boost Clock Speed Gaming Mode: 1670 MHz
OC Mode: 1750 MHz
Interface PCI Express 4.0 x16
Supported APIs DirectX: 12
OpenGL: 4.6
Memory
Memory Speed 14 Gb/s
Memory Configuration 6 GB
Memory Interface GDDR6
Memory Interface Width 144-Bit
Memory Bandwidth 336 GB/s
Display Support
Display Connectors 3 x DisplayPort 1.4
1 x HDMI 2.0b
Power Requirements
PCI Power Connectors 1 x 8-Pin
Recommended System Power Requirement 450 W
Dimensions
Height 4.57″ / 115.96 mm
Length 11.02″ / 279.82 mm
