GV-R57XTAORUS-8GD Technical Specifications

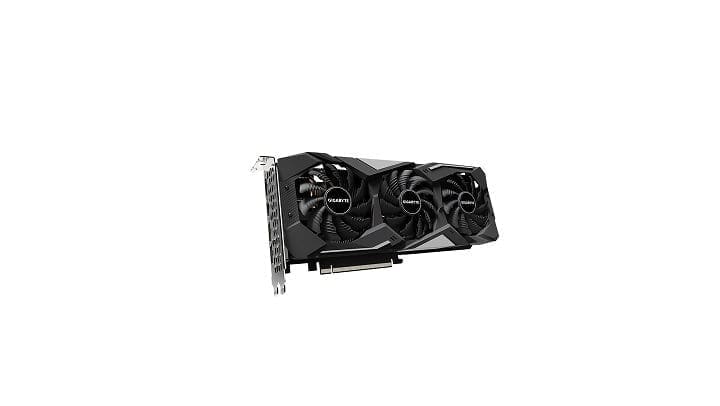

Gigabyte AORUS Radeon RX 5700 XT Graphics Card
GPU
GPU Model AMD Radeon RX 5700 XT
Stream Processors 2560
Boost Clock Speed Gaming Mode: 1905 MHz
OC Mode: 2010 MHz
Base Clock Speed 1770 MHz
Interface PCI Express 4.0 x16
Supported APIs DirectX: 12
OpenGL: 4.6
Memory
Memory Speed 14 Gb/s
Memory Configuration 8 GB
Memory Interface GDDR6
Memory Interface Width 256-Bit
Memory Bandwidth 448 GB/s
Display Support
Display Connectors 3 x DisplayPort 1.4
1 x HDMI 2.0b
2 x HDMI 1.4b
Maximum Digital Resolution 7680 x 4320 @ 60 Hz
Power Requirements
PCI Power Connectors 2 x 8-Pin
Recommended System Power Requirement 600 W
Dimensions
Height 4.84″ / 123.00 mm
Length 11.42″ / 290.00 mm
Width 2.5-Slot
