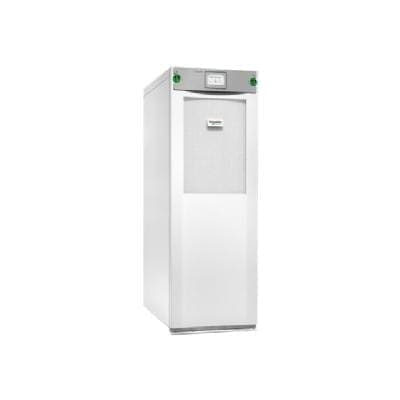

GVSUPS10K0B4FS Galaxy VS UPS 10kW 208V for up to 4 internal 9Ah

GVSUPS10K0B4FS Overview

Galaxy VS UPS 10kW 208V for up to 4 internal 9Ah smart modular battery strings, Start-up 5×8
Highly efficient, easy-to-deploy 10kW, 208V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 4 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5×8 start-up service.
Includes: Dust filter, EcoStruxure Ready, Installation Manual, Integrated network management, Start-up service

$13,130

Buy Now
Availability: In Stock
SKU:GVSUPS10K0B4FS
Brand:

GVSUPS10K0B4FS Technical Specifications

Galaxy VS UPS 10kW 208V for up to 4 internal 9Ah

Output
Max Configurable Power (Watts)
10.0kWatts / 10.0kVA
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50Hz, 60Hz
Output Frequency (not synced)
50Hz +/-0.1% for 50Hz nominal, 60Hz +/-0.1% for 60Hz nominal
Other Output Voltages
200, 220
Load Crest Factor
2.5
Topology
Double Conversion Online
Waveform type
Sinewave
Overload Operation
150% for 1 minute 125% for 10 minutes
Output Voltage THD
<2% linear load and <5% non-linear load
Output Voltage Tolerance
+/-1% after 50ms
Bypass
Built in static bypass
Input
Input frequency
40-70Hz
Input voltage range for main operations
177-239V
Input Total Harmonic Distortion
Less than 3% at full load
Other Input Voltages
200, 220
Maximum Short Circuit Withstand (Icw)
65.0kAmps
Input Power Factor at Full Load
0.99
Batteries & Runtime
Battery type
VRLA
Nominal Battery Voltage
480
End of Discharge Maximum Battery Current
27.0A
End of Discharge Battery Voltage
384VDC
Efficiency
View Efficiency Graph
Communications & Management
Control panel
Touchscreen LCD user interface
Audible Alarm
Audible and visible alarms prioritized by severity
Physical
Maximum Height
58.0inches (1485MM, 148.5CM)
