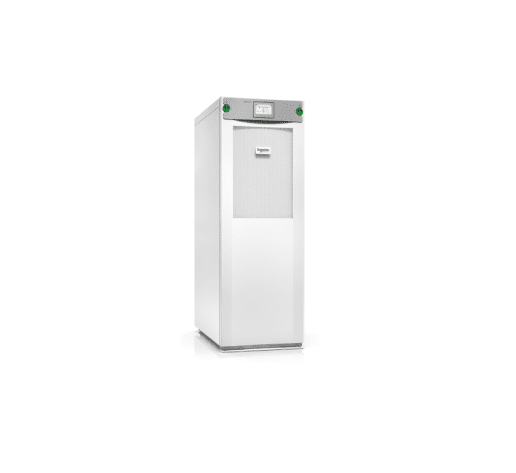

GVSUPS10KFS Galaxy VS UPS 10kW 208V for External Batteries

GVSUPS10KFS Overview

Galaxy VS UPS 10kW 208V for External Batteries, Start-up 5×8
Highly efficient, easy-to-deploy 10kW, 208V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels. Galaxy VS reduces your energy losses by up to 66% with the patented ECOnversion mode – reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in normal operating mode. The UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5×8 start-up service. For battery runtime details, see the runtime charts published under the Documents tab.
Includes: Dust filter, Installation guide, Integrated network management, Power modules ship installed, Start-Up Service, Top and bottom cable entry

$13,009

Buy Now
Availability: In Stock
SKU:GVSUPS10KFS
Brand:

GVSUPS10KFS Technical Specifications

Galaxy VS UPS 10kW 208V for External Batteries

Output
Max Configurable Power (Watts)
10.0kWatts / 10.0kVA
Output Voltage Distortion
Less than 3%
Output Frequency (sync to mains)
50 Hz, 60 Hz
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
Other Output Voltages
200, 220
Load Crest Factor
2.5
Topology
Double Conversion Online
Waveform type
Sine wave
Overload Operation
150% for 1 minute 125% for 10 minutes
Output Voltage THD
<1% linear load and <3% non-linear load
Output Voltage Tolerance
+/-1% after 50ms
Bypass
Built-in Static Bypass
Input
Input frequency
40 – 70 Hz
Input voltage range for main operations
177 – 239 (208V)V
Input Total Harmonic Distortion
Less than 3% for full load
Other Input Voltages
200, 220
Input Power Factor at Full Load
0.99
Batteries & Runtime
Battery type
No internal battery – uses external battery system
Nominal Battery Voltage
384-480VDC
End of Discharge Maximum Battery Current
34.0A
End of Discharge Battery Voltage
307 VDC
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
GVS_Cable2ndBatCab, GVS_MBCKIT_UL, GVS_NarrowCBC_Seismic, GVS_NarrowSeismicKit, GVS_Parallel, GVS_WideCBC_Seismic, GVS_WideUPS_AirFilter, GVS_WideUPSMBC_SeismicKit, GVS_XFMRSeismicKit
Control panel
Touch Screen LCD User Interface
Audible Alarm
Audible and visible alarms prioritized by severity
Available SmartSlot™ Interface Quantity
1
Physical
Maximum Height
58.46inches (1485MM, 148.5CM)
Maximum Width
20.51inches (521MM, 52.1CM)
Maximum Depth
33.35inches (847MM, 84.7CM)
Net Weight
462.97lbs. (210.0KG)
Shipping weight
518.09lbs. (235.0KG)
Shipping Height
66.14inches (1680MM, 168.0CM)
Shipping Width
25.2inches (640MM, 64.0CM)
