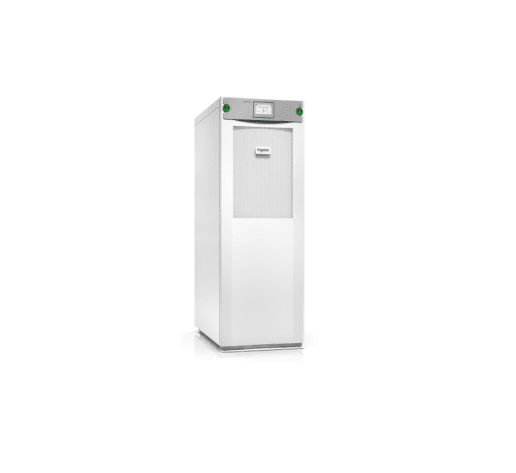

GVSUPS20KB4FS Galaxy VS UPS 20kW 208V, 2 internal 9Ah modular
GVSUPS20KB4FS Overview
Galaxy VS UPS 20kW 208V, 2 internal 9Ah smart modular battery strings, expandable to 4, Start-up 5×8
Highly efficient, easy-to-deploy 20kW, 208V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5×8 start-up service and 2 smart high-capacity modular battery strings, expandable to 4 strings for extended runtime. Runtime charts available in the Documents tab.
Includes: Dust filter, EcoStruxure Ready ((UPS)), Installation guide, Integrated network management, Power modules ship installed, Start-Up Service
$20,660
Buy Now
GVSUPS20KB4FS Technical Specifications
Galaxy VS UPS 20kW 208V, 2 internal 9Ah modular
Output
Max Configurable Power (Watts)
20.0kWatts / 20.0kVA
Output Frequency (sync to mains)
50 Hz, 60 Hz
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
Other Output Voltages
200, 220
Load Crest Factor
2.5
Topology
Double Conversion Online
Waveform type
Sine wave
Overload Operation
150% for 1 minute 125% for 10 minutes
Output Voltage Tolerance
+/-1% after 50ms
Bypass
Built-in Static Bypass
Input
Input frequency
40 – 70 Hz
Input voltage range for main operations
177 – 239 (208V)V
Input Total Harmonic Distortion
Less than 3% for full load
Other Input Voltages
200, 220
Maximum Short Circuit Withstand (Icw)
65.0kAmps
Input Power Factor at Full Load
0.99
Batteries & Runtime
Battery type
VRLA
Nominal Battery Voltage
480V
End of Discharge Maximum Battery Current
54.0A
End of Discharge Battery Voltage
384 Vdc
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
GVS_350mm_AirFilter, GVS_350mm_Seismic, GVSAIO_BypassCabinetCables_UL, GVSAIO_MBP_UL
Control panel
Touch Screen LCD User Interface
Audible Alarm
Audible and visible alarms prioritized by severity
Available SmartSlot™ Interface Quantity
1
Physical
Maximum Height
58.46inches (1485MM, 148.5CM)
Maximum Width
20.51inches (521MM, 52.1CM)
Maximum Depth
33.35inches (847MM, 84.7CM)
Net Weight
1014.13lbs. (460.0KG)
Shipping weight
1080.27lbs. (490.0KG)
Shipping Height
66.14inches (1680MM, 168.0CM)
Shipping Width
25.2inches (640MM, 64.0CM)
Shipping Depth
38.98inches (990MM, 99.0CM)
