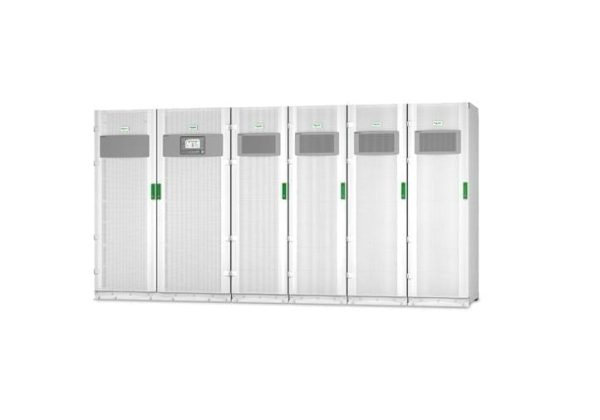

GVX1250K1000HS Galaxy VX 1000kVA N+1 Redundant UPS 400V
GVX1250K1000HS Overview
Galaxy VX 1000kVA N+1 Redundant UPS 400V, Start up 5×8
Highly efficient, scalable, 3-phase power protection with flexible operating modes and ECOnversion™ for large facilities, data centers, and business critical applications.
Includes: Installation guide, Start-Up Service
$278,800
GVX1250K1000HS Technical Specifications
Galaxy VX 1000kVA N+1 Redundant UPS 400V
Output
Max Configurable Power (Watts)
1.0MWatts / 1.0MVA
Output Frequency (sync to mains)
50 Hz, 60 Hz
Output Frequency (not synced)
50Hz +/- 0.1% for 50Hz nominal
Other Output Voltages
380, 415, 440
Load Crest Factor
3 with THC <5%
Topology
Double Conversion Online
Waveform type
Sine wave
Overload Operation
150% for 1 minute 125% for 10 minutes
Output Voltage THD
< 2% linear load and <3% non-linear load
Input
Input frequency
40 – 70 Hz
Input Total Harmonic Distortion
Less than 3% for full load
Other Input Voltages
380, 415, 440
Maximum Short Circuit Withstand (Icw)
100.0kAmps
Batteries & Runtime
Battery type
No internal battery – uses external battery system
Nominal Battery Voltage
480V
End of Discharge Battery Voltage
384 Vdc
Efficiency
View Efficiency Graph
Communications & Management
Control panel
7″ Touch Screen Display
Audible Alarm
Audible and visible alarms prioritized by severity
Available SmartSlot™ Interface Quantity
2
Physical
Maximum Height
77.56inches (1970MM, 197.0CM)
Maximum Width
177.17inches (4500MM, 450.0CM)
Maximum Depth
35.43inches (900MM, 90.0CM)
Net Weight
7716.19lbs. (3500.0KG)
Shipping weight
10317.64lbs. (4680.0KG)
Shipping Height
84.65inches (2150MM, 215.0CM)
Shipping Width
212.2inches (5390MM, 539.0CM)
Shipping Depth
41.73inches (1060MM, 106.0CM)
Color
White
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 (non-condensing) %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-15 – 40 °C
Storage Relative Humidity
0 – 95 (non-condensing) %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
69.5dBA
Online thermal dissipation
169513.0BTU/hr
Protection Class
IP 20
Conformance
Approvals
cUL Listed, C-tick, CE, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, UL 1778 5th edition
Standard warranty
1 year on-site repair or replace with factory authorized Start-Up
