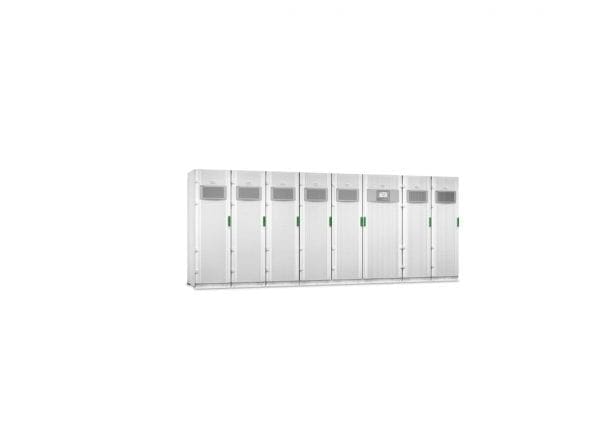

GVX1250K1500GS Galaxy VX 1250kVA Scalable to 1500kVA 480V

GVX1250K1500GS Overview

Galaxy VX 1250kVA Scalable to 1500kVA 480V, Start up 5×8
A highly efficient, modular, 1250 kVA scalable to 1500 kVA 3-phase UPS that provides the performance, flexibility, and maximized asset utilization today’s large data centers and mission critical applications require. This EcoStruxure Ready UPS features up to 99% efficiency with patented ECOnversion technology. Includes 5×8 start-up service.
Includes: Installation guide, Start-Up Service

Availability: In Stock
SKU:GVX1250K1500GS
Brand:

GVX1250K1500GS Technical Specifications

Galaxy VX 1250kVA Scalable to 1500kVA 480V

Output
Max Configurable Power (Watts)
1.5MWatts / 1.5MVA
Output Frequency (sync to mains)
60 Hz
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal
Load Crest Factor
3 with THC <5%
Topology
Double Conversion Online
Waveform type
Sine wave
Overload Operation
150% for 1 minute 125% for 10 minutes
Output Voltage THD
< 2% linear load and <3% non-linear load
Input
Input frequency
40 – 70 Hz
Input Total Harmonic Distortion
Less than 3% for full load
Maximum Short Circuit Withstand (Icw)
100.0kAmps
Batteries & Runtime
Battery type
No internal battery – uses external battery system
Nominal Battery Voltage
480V
End of Discharge Battery Voltage
384 Vdc
Efficiency
View Efficiency Graph
Communications & Management
Control panel
7″ Touch Screen Display
Audible Alarm
Audible and visible alarms prioritized by severity
Available SmartSlot™ Interface Quantity
2
Physical
Maximum Height
77.56inches (1970MM, 197.0CM)
Maximum Width
196.85inches (5000MM, 500.0CM)
Maximum Depth
35.43inches (900MM, 90.0CM)
