GVX1500K1500HS Galaxy VX 1500kVA, 400V, Start up 5×8

GVX1500K1500HS  Overview

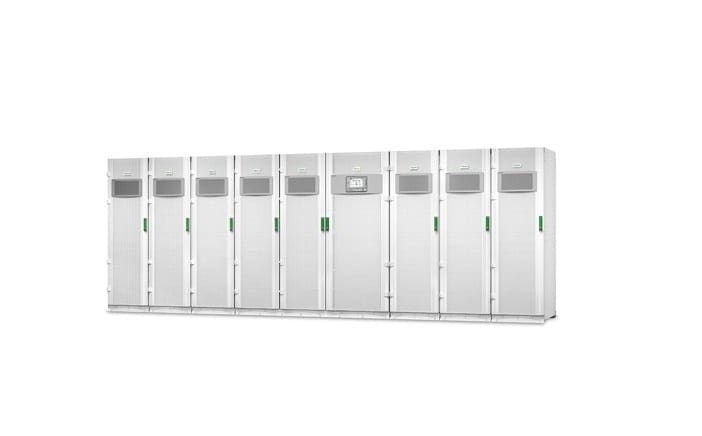

Galaxy VX 1500kVA, 400V, Start up 5×8
A highly efficient, modular, 1500 kVA 3-phase UPS that provides the performance, flexibility, and maximized asset utilization today’s large data centers and mission critical applications require. This EcoStruxure Ready UPS features up to 99% efficiency with patented ECOnversion technology. Includes 5×8 start-up service.
Includes: Installation guide, Start-Up Service

$322,000

Buy Now
Availability: In Stock
SKU:GVX1500K1500HS
Brand:

GVX1500K1500HS Technical Specifications

Galaxy VX 1500kVA, 400V, Start up 5×8

Output
Max Configurable Power (Watts)
1.5MWatts / 1.5MVA
Output Frequency (sync to mains)
50 Hz, 60 Hz
Output Frequency (not synced)
50Hz +/- 0.1% for 50Hz nominal
Other Output Voltages
380, 415, 440
Load Crest Factor
3 with THC <5%
Topology
Double Conversion Online
Waveform type
Sine wave
Overload Operation
150% for 1 minute 125% for 10 minutes
Output Voltage THD
< 2% linear load and <3% non-linear load
Input
Input frequency
40 – 70 Hz
Input Total Harmonic Distortion
Less than 3% for full load
Other Input Voltages
380, 415, 440
Maximum Short Circuit Withstand (Icw)
100.0kAmps
Input Power Factor at Full Load
1.0
Batteries & Runtime
Battery type
No internal battery – uses external battery system
Nominal Battery Voltage
480V
End of Discharge Battery Voltage
384 Vdc
Efficiency
View Efficiency Graph
Communications & Management
Control panel
7″ Touch Screen Display
Audible Alarm
Audible and visible alarms prioritized by severity
Available SmartSlot™ Interface Quantity
2
Physical
Maximum Height
77.56inches (1970MM, 197.0CM)
Maximum Width
220.47inches (5600MM, 560.0CM)
Maximum Depth
35.43inches (900MM, 90.0CM)
Net Weight
8796.45lbs. (3990.0KG)
Shipping weight
14498.0lbs. (6576.18KG)
Shipping Height
84.65inches (2150MM, 215.0CM)
Shipping Width
307.87inches (7820MM, 782.0CM)
Shipping Depth
41.73inches (1060MM, 106.0CM)
Color
White
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 (non-condensing) %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-15 – 40 °C
Storage Relative Humidity
0 – 95 (non-condensing) %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
68.0dBA
Online thermal dissipation
261497.0BTU/hr
Protection Class
IP 20
Conformance
Approvals
C-tick, CE, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IBC 2012, IEC 62040-4, ISTA 2B
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
Battery Directive
Compliant
Proposition 65 Warning
Available in Documentation tab
