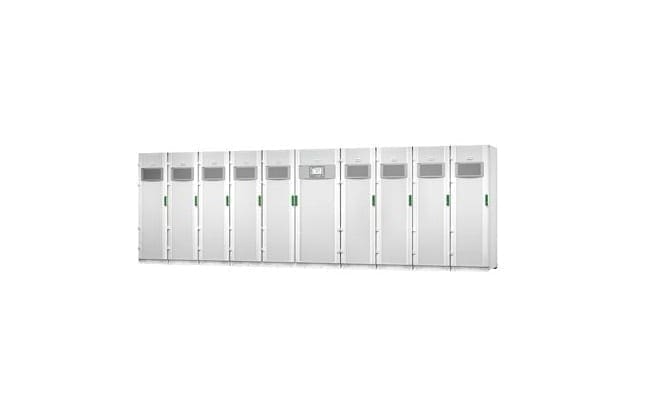

GVX1750K1500HS Galaxy VX 1500kVA N+1 Redundant UPS 400V

GVX1750K1500HS Overview

Galaxy VX 1500kVA N+1 Redundant UPS 400V, Start up 5×8
A highly efficient, modular, 1500 kVA N+1 3-phase UPS that provides the performance, flexibility, and maximized asset utilization today’s large data centers and mission critical applications require. This EcoStruxure Ready UPS features up to 99% efficiency with patented ECOnversion technology. Includes 5×8 start-up service.
Includes: Installation guide, Start-Up Service

$367,200

Buy Now
Availability: In Stock
SKU:GVX1750K1500HS
Brand:

GVX1750K1500HS Technical Specifications

Galaxy VX 1500kVA N+1 Redundant UPS 400V

Output
Max Configurable Power (Watts)
1.5MWatts / 1.5MVA
Output Frequency (sync to mains)
50 Hz, 60 Hz
Output Frequency (not synced)
50Hz +/- 0.1% for 50Hz nominal
Other Output Voltages
380, 415, 440
Load Crest Factor
3 with THC <5%
Topology
Double Conversion Online
Waveform type
Sine wave
Overload Operation
150% for 1 minute 125% for 10 minutes
Output Voltage THD
< 2% linear load and <3% non-linear load
Input
Input frequency
40 – 70 Hz
Input Total Harmonic Distortion
Less than 3% for full load
Other Input Voltages
380, 415, 440
Maximum Short Circuit Withstand (Icw)
100.0kAmps
Input Power Factor at Full Load
1.0
Batteries & Runtime
Battery type
No internal battery – uses external battery system
Nominal Battery Voltage
480V
End of Discharge Battery Voltage
384 Vdc
Efficiency
View Efficiency Graph
Communications & Management
Control panel
7″ Touch Screen Display
Audible Alarm
Audible and visible alarms prioritized by severity
Available SmartSlot™ Interface Quantity
2
Physical
Maximum Height
77.56inches (1970MM, 197.0CM)
Maximum Width
244.09inches (6200MM, 620.0CM)
Maximum Depth
35.43inches (900MM, 90.0CM)
Net Weight
9986.95lbs. (4530.0KG)
Shipping weight
12841.94lbs. (5825.0KG)
Shipping Height
84.65inches (2150MM, 215.0CM)
Shipping Width
290.55inches (7380MM, 738.0CM)
Shipping Depth
41.73inches (1060MM, 106.0CM)
Color
White
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 (non-condensing) %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-15 – 40 °C
Storage Relative Humidity
0 – 95 (non-condensing) %
