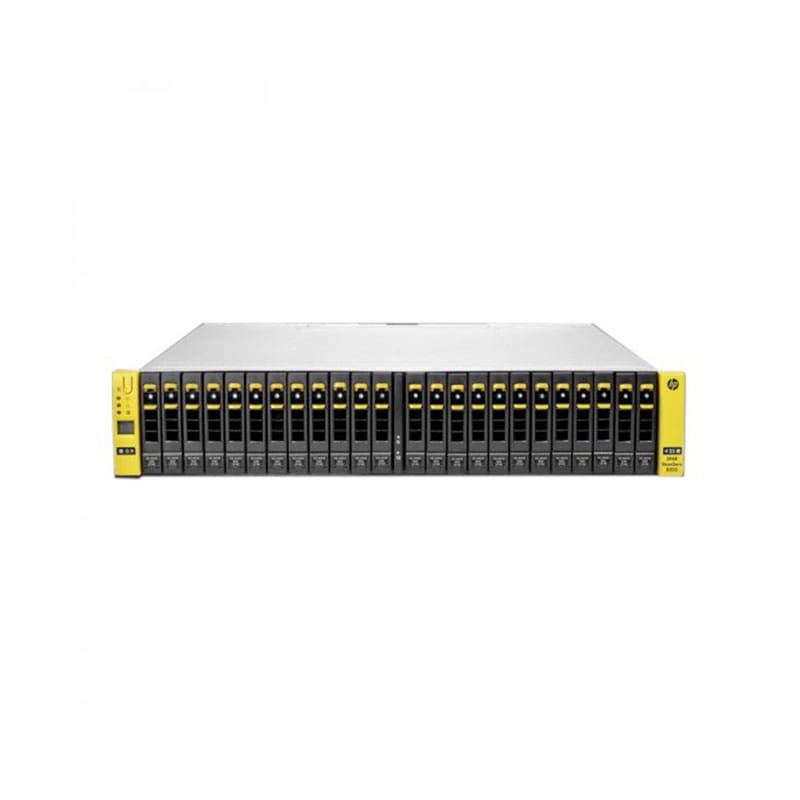

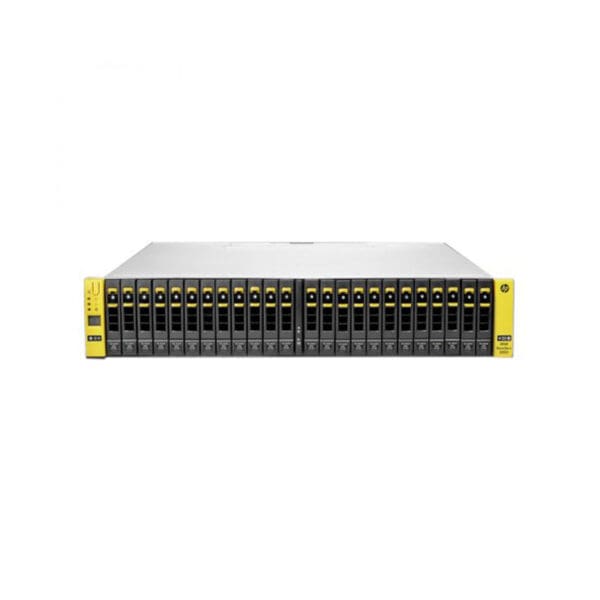

H6Y96B HPE 3PAR Store Serv 8400 1200TiB 24 x 2.5-inch SAS Drives 16Gbps

H6Y96B Technical Specifications

HPE 3PAR Store Serv 8400 1200TiB 24 x 2.5-inch SAS Drives 16Gbps

Manufacturer Part Number H6Y96B
Brand Name HPE
Product Type SAN Storage System
Storage
Number of Hard Drives Supported 24
Number of Hard Drives Installed No
Processor & Chipset
Number of Nodes 2
Number of Processors Installed 2
Processor Core Hexa-core (6 Core)
Processor Speed 2.20 GHz
Network & Communication
Ethernet Technology Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays 24
Number of 2.5″ Bays 24
Number of Total Expansion Slots 2
Controllers
Number of Controllers 2
Controller Type Serial Attached SCSI (SAS)
RAID Supported Yes
RAID Levels 0, 1, 5, 6
Interfaces/Ports
Network (RJ-45) Yes
Fibre Channel Yes
Management & Protocols
Protocols FCP
Physical Characteristics
Height 3.5″
Width 19″
Depth 26.6″
Form Factor Rack-mountable
Rack Height 2U
Weight (Approximate) 47.62 lb
