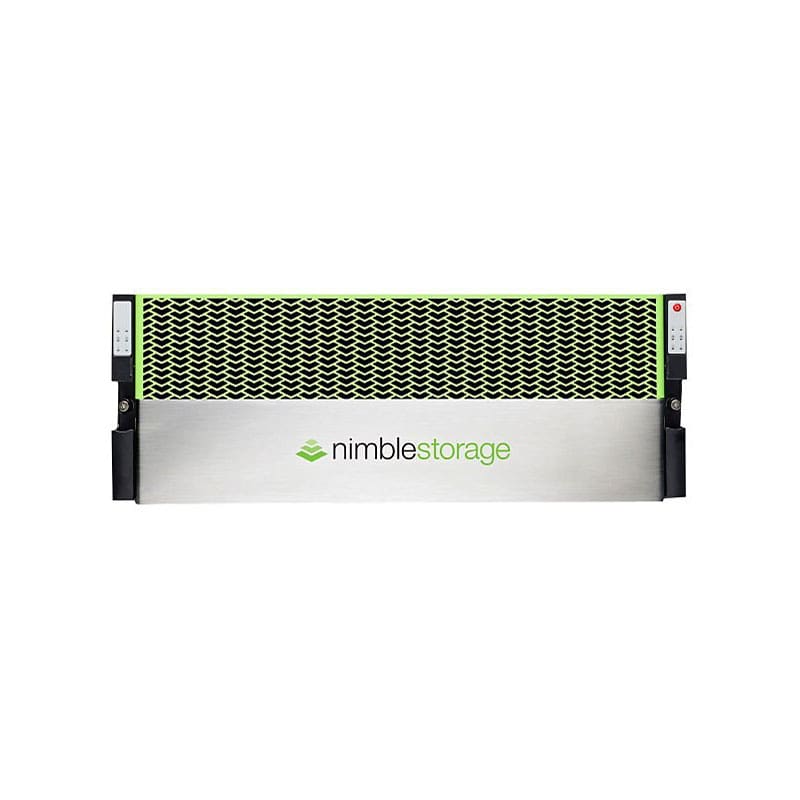

HF20H-2P-11T-B Nimble Storage Adaptive Flash HF-Series Solid State Hard Drive

HF20H-2P-11T-B Technical Specifications

Nimble Storage Adaptive Flash HF-Series Solid State Hard Drive

Brand Nimble
Product Line Nimble Storage Adaptive Flash HF-Series
Model HF20H
Manufacturer Nimble Storage

Storage
Hard Drive (2nd) Installed 2
Hard Drive Capacity 1 TB
Hard Drive Capacity (2nd) 480 GB
Hard Drive Type HDD
HDD Array External Interface iSCSI (10 GbE)
HDD Array External Interface Class iSCSI
Installed Quantity 11
Max Drive Capacity 11 TB
Optical Drive Type None
Rack-mountable
Rack-mountable
Storage (2nd) SSD
Storage Controller (2nd) None
Storage Controller Type RAID

Expansion Slots
Expansion Bays 11 – 3.5″ LFF, 2 – 2.5″ SFF

Connectivity
Interface Provided 2 x Ethernet 10Gb – SFP+, 4 x Ethernet 10Gb – RJ-45

Power
Frequency 50/60 hertz
Nominal Voltage AC 120/230 V
Power Supplies Installed 2

Technical Information
Max Operating Temperature 95 degree Fahrenheit
Min Operating Temperature 50 degree Fahrenheit
Operating Humidity 8 – 90%
Operation Type
Internal power supply
Supported Devices 13

Product Information
Controllers Included 2
Packaged Quantity 1
Product Type Solid state / hard drive array

Dimensions & Weight
Height 6.9 inch
Height (Rack Units) 4
Width 17.3 inch
Depth 35 inch
