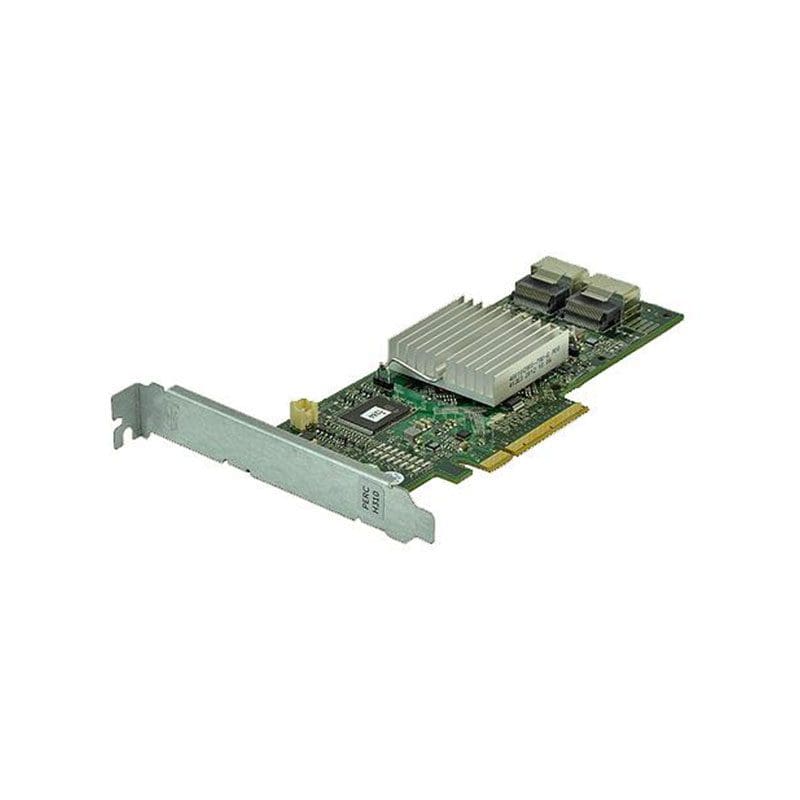

HV52W Dell PERC H310 SAS 6Gbps PCI Express RAID Controller Card

HV52W Technical Specifications

Dell PERC H310 8-Port SAS 6Gbps PCI Express 2.0 x8 0/1/ 5/10/50 RAID Controller Card

Manufacturer Part Number HV52W
Brand Name Dell
Product Type SAS Controller
Technical Information
Host Interface PCI Express 2.0 x8
Controller Type 6Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
5
10
50
Interfaces/Ports
Total Number of SAS Ports 8
Number of SAS Ports (Internal) 2
SAS Connector Details 2 SFF-8087
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
