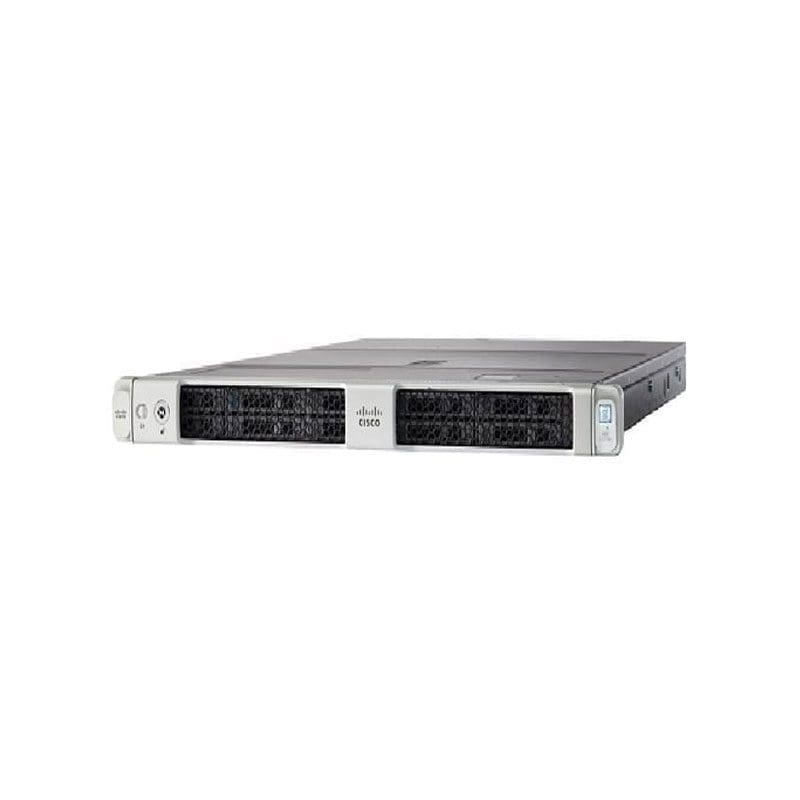

HX-C220-M5SN Cisco Systems Ucs C220 M5 SFF 10 NVMe
HX-C220-M5SN Overview
The UCS C220 M5 SFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs and capacity points up to 128GB, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
$2,685
HX-C220-M5SN Technical Specifications
Cisco Systems Ucs C220 M5 SFF 10 NVMe
General Information
Product Name Ucs C220 M5 SFF 10 NVMe without CPU Memory HD
Manufacturer Part Number HX-C220-M5SN
Product Series C220 M5
Product Type Barebone System
Cisco UCS
Interfaces/Ports
Total Number of USB Ports 2
Number of USB 3.0 Ports 2
Controllers
RAID Supported Yes
Display & Graphics
Graphics Controller Manufacturer ASPEED
Graphics Controller Model Pilot 4
Graphics Memory Capacity 16 MB
I/O Expansions
Number of Total Expansion 10 Bays
Number of Internal 2.5″ Bays 10
Memory
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-2666/PC4-21300
Number of Total Memory Slots 24 DDR4 Slots
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Storage
Optical Drive Type No
Processor & Chipset
Number of Processors Supported 2
Processor Supported Xeon Platinum
Xeon Gold
Xeon Silver
Xeon Bronze
64-bit Processing Yes
Chipset Manufacturer Intel
Chipset Model C620
Physical Characteristics
Color Silver
Form Factor Rack-mountable
Rack Height 1U Rack Mount
Height 1.7″
Width 19″
Depth 31″
