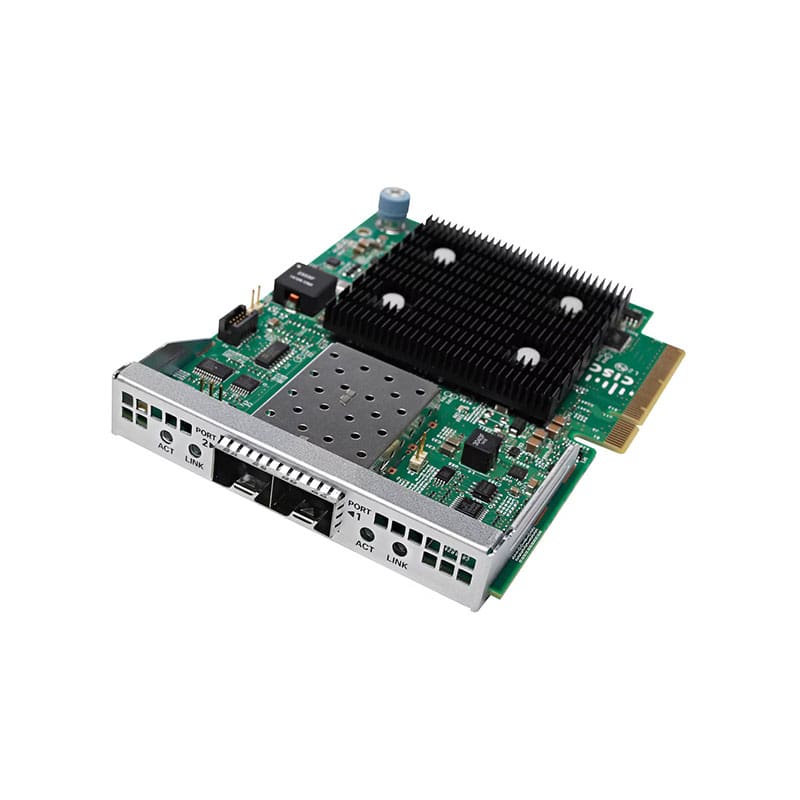

HX-MLOM-CSC-02 Technical Specifications
Cisco UCS Virtual Interface Card 1227 Network Adapter PCIe 2.0 x8 10G
Brand: Cisco
Product Line: Cisco UCS
Model: Virtual Interface Card 1227
Manufacturer: Cisco Unified Computing
Network & Communication
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3ae, IEEE 802.3x
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE)
Features: Jumbo Frames support, NetFlow, Priority-based flow control, Single Root I/O Virtualization (SR-IOV), VLAN support
Fibre Channel: FCP
Form Factor: Plug-in module
Host Interface: PCI Express 2.0 x8
PCI Specification Revision: PCIe 2.0
Product Type: Network adapter
Connectivity
Interface Provided: 2 x 10Gb Ethernet / FCoE – SFP+
Port Quantity: 2
Network & Adapter Ports: 10Gb Ethernet / Fibre Channel over Ethernet (FCoE)
Power
Power Consumption Operational: 14 watt
Dimensions & Weight
Height: 3.6 inch
Depth: 4.5 inch
