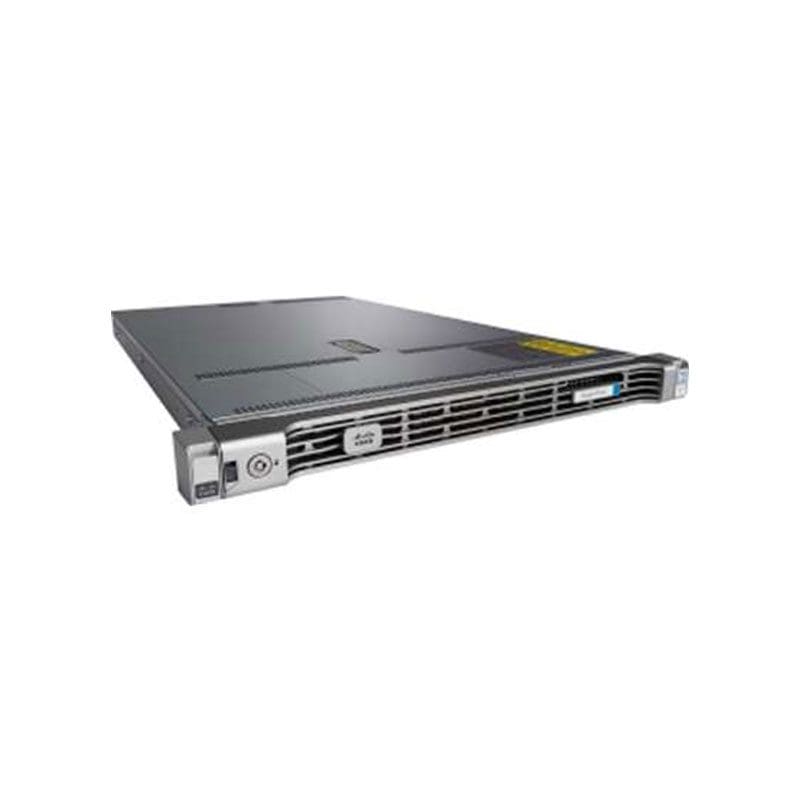

HX-SP-220M4SV1-3A Cisco Systems Ucs SP HX220C Hyperflex System

HX-SP-220M4SV1-3A Overview

Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.

$19,999

Buy Now
Availability: In Stock
SKU:HX-SP-220M4SV1-3A
Brand:

HX-SP-220M4SV1-3A Technical Specifications

Cisco Systems Ucs SP HX220C Hyperflex System

General Information
Product Name Cisco Ucs SP HX220C Hyperflex System 2XE52660V3
Manufacturer Part Number HX-SP-220M4SV1-3A
Product Line HyperFlex
Product Series HX220c M4
Product Type Server
Controllers
Controller Type 12Gb/s SAS
RAID Supported No
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
Memory
Standard Memory 384 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Memory Slots: 24 x DDR4 RAM Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 770 W
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2660v3
Processor Core Deca-core (10 Core)
Processor Speed 2.60 GHz
Physical Characteristics
Form Factor Rack
Rack Height 1U Rack Mount
Height 1.7″
Width 19″
Depth 31″
