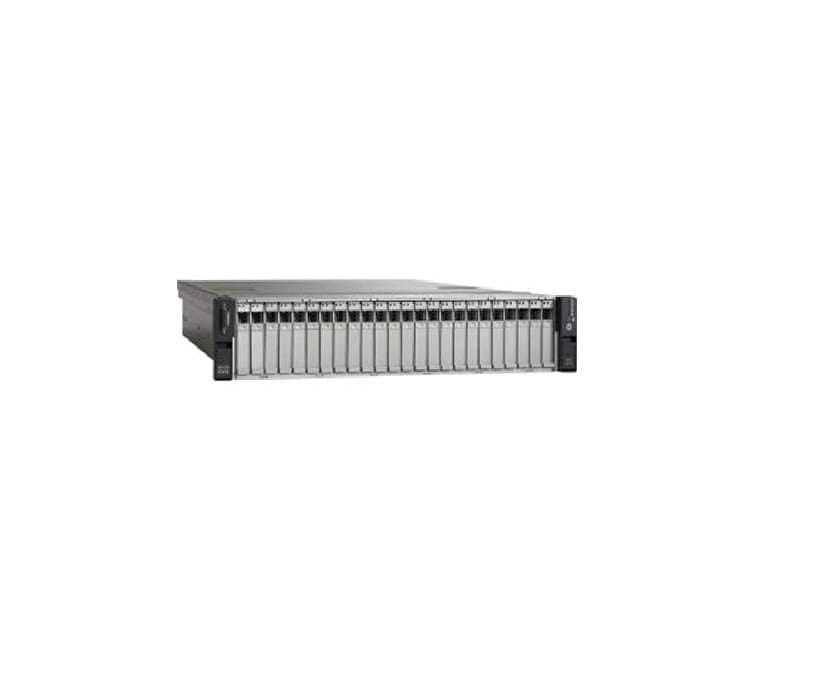

HXAF-SP-220M5SX-V Cisco Systems SP HXAF220C Hyperflex System

HXAF-SP-220M5SX-V Overview

Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.

$11,499

Buy Now
Availability: In Stock
SKU:HXAF-SP-220M5SX-V
Brand:

HXAF-SP-220M5SX-V Technical Specifications

Cisco Systems SP HXAF220C Hyperflex System

General Information
Product Name SP HXAF220C Hyperflex System 2X4114 12X16GB
Manufacturer Part Number HXAF-SP-220M5SX-V
Product Line HyperFlex
Product Series HXAF220c M5
Product Type Server
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
Display & Graphics
Graphics Controller Manufacturer ASPEED
Graphics Controller Model Pilot 4
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Total Expansion Bays 10
Number of Internal 2.5″ Bays 10
Hot Swap Bays Yes
Memory
Standard Memory 192 GB
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24 DDR4 Slots
Number of Occupied Memory Slots 12
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Power Description
Number of Power Supplies Supported 2
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon Silver
Processor Model 4114
Processor Core Deca-core (10 Core)
Processor Speed 2.20 GHz
Physical Characteristics
Form Factor Rack
Rack Height 1U Rack Mount
Height 1.7″
Width 19″
Depth 31″
Other Information
Product Family HyperFlex HXAF220c M5
64-bit Processing Yes
Chipset Manufacturer Intel
Chipset Model C620
Number of Nodes 1
Total Number of USB Ports 2
Number of USB 3.0 Ports 2
Memory Standard DDR4-2666/PC4-21300
