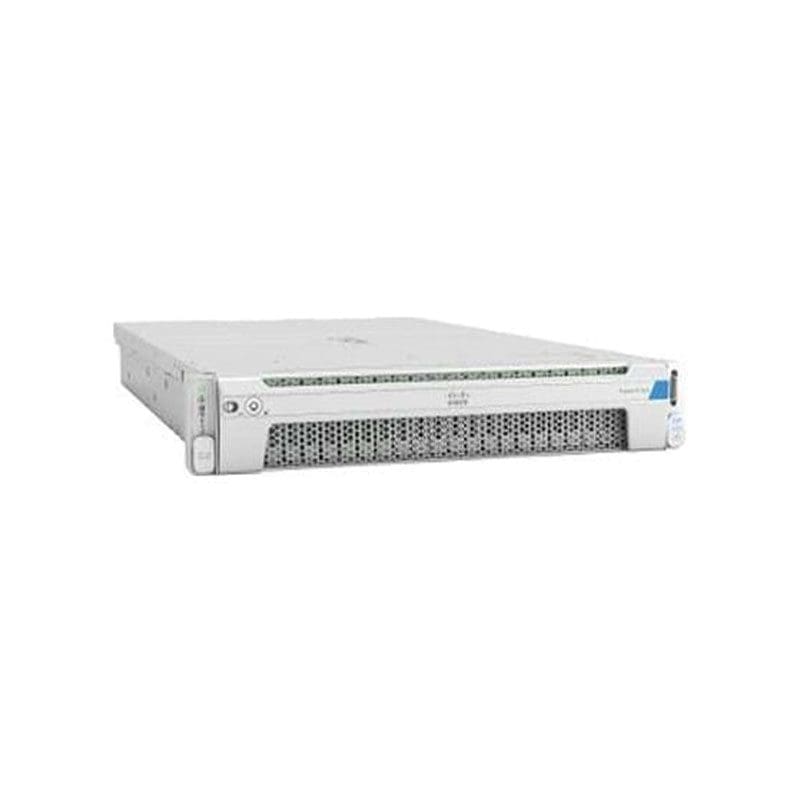

HXAF-SP-240M5SX-P2 Cisco UCS SmartPlay HXAF240c M5

HXAF-SP-240M5SX-P2 Technical Specifications

Cisco UCS SmartPlay HXAF240c M5 Performance

Bay Provided
Form Factor :2.5″ SFF
Free Qty :10
Total Qty :10
Free Qty :16
Total Qty :16
Cabinet
Chassis Built-in Devices :Backplane
Cache Memory
Installed Size :55 MB
Installed Size :55
Per Processor Size :27.5 MB
Per Processor Size :27.5
Type :L3 cache
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :26 Bays
Ethernet Technology: 40 Gigabit Ethernet
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SATA/SAS
Dimensions & Weight
Depth :29.1 in
Height :3.4 in
Width :17.6 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :8 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Size :Full-length, full-height
Type :PCIe x8
Size :Three-quarter-length, full-height
Slot Comments :NCSI Support
Type :PCIe x16
Slot Comments :Riser card only
Type :Expansion slot
Type :M.2 Card
Type :mLOM
Type :SD card (internal)
Hard Drive
Installed Qty :1
Interface Class :Serial SATA
SSD Form Factor :M.2
Type :SSD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Manufacturer :Cisco Unified Computing
Model :SmartPlay HXAF240c M5 Performance 2
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Connector Type :DB-15
Type :VGA
Connector Type :QSFP
Type :LAN (40 Gigabit Ethernet)
Connector Type :RJ-45
Qty :2
Type :LAN (10 Gigabit Ethernet)
Qty :1
Type :KVM
Qty :3
Type :USB 3.0
Type :Management
Type :Serial
Miscellaneous
Color Category :Gray
Compliant Standards :ACPI 4.0, AS/NZS 60950-1, AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, CISPR 24, CISPR 32 Class A, CNS 13438 Class A, Directive 2014/30/EU, Directive 2014/35/EU, EN 300386, EN 55032 Class A, EN 60950-1 Second Edition, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, GB4943.1-2001, ICES-003 Class A, IEC 60950-1 Second Edition, KN32 Class A, KN35, UL 60950-1 Second Edition, VCCI Class A
Height (Rack Units) :2U Rack Mount
Included Accessories :2 x CPU Heatsink, 26 x SFF drive blanking panel, 32 GB microSD card, Bezel, Cisco Ball Bearing Rail Kit, Mini Storage carrier for M.2 SATA/NVME (holds up to 2)
Networking
Data Link Protocol :10 Gigabit Ethernet, 40 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :Cisco UCS Virtual Interface Card 1387, Intel X550
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Installed Qty :2
Max Supported Qty :2
Power Provided :1600 Watt
Power Redundancy :Yes
Type :Power supply – hot-plug
