HXAF240C-M5SX Technical Specifications

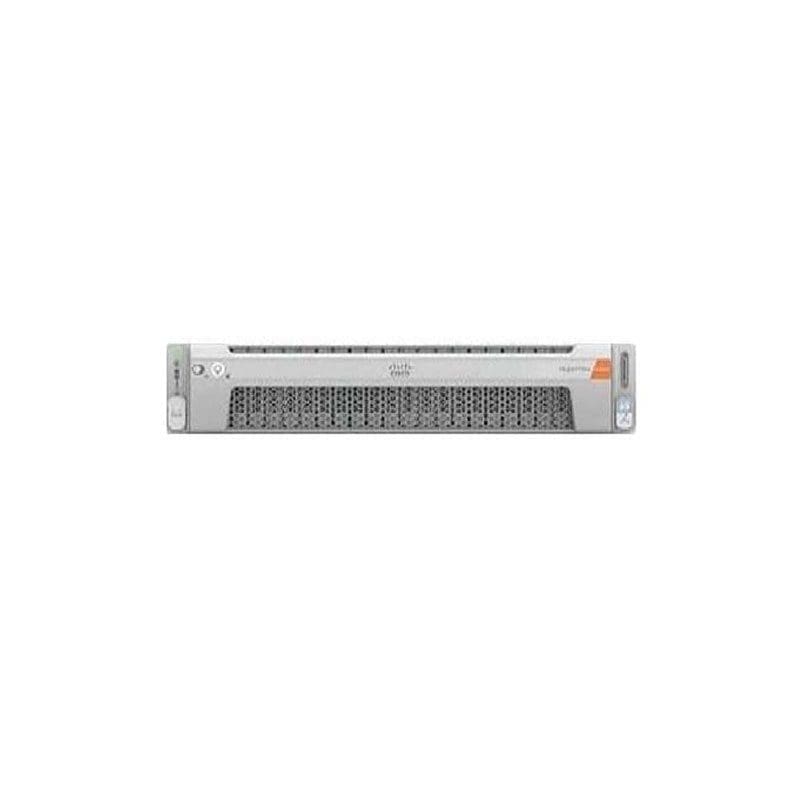

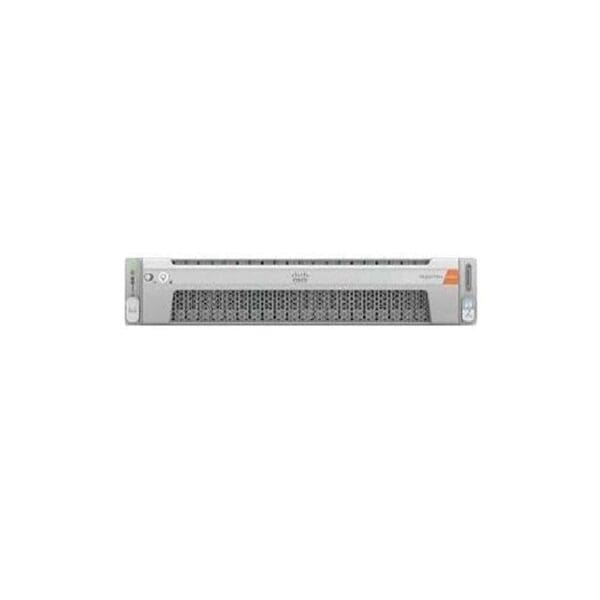

Cisco Systems Hyperflex HX240C M5 All FL N
General Information
Product Name Hyperflex HX240C M5 All FL N
Manufacturer Part Number HXAF240C-M5SX
Product Line HyperFlex
Product Series HXAF240c M5
Packaged Quantity 1
Product Type Barebone System
Interfaces/Ports
Total Number of USB Ports 2
Number of USB 3.0 Ports 2
Controllers
Controller Type Serial SATA/600
12Gb/s SAS
RAID Supported Yes
Display & Graphics
Graphics Controller Manufacturer ASPEED
Graphics Controller Model Pilot 4
Graphics Memory Capacity 16 MB
I/O Expansions
Number of Total Expansion 24 Bays
Number of Internal 2.5″ Bays 24
Memory
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-2666/PC4-21300
Number of Total Memory Slots 24 DDR4 Slots
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Storage
Optical Drive Type No
Processor & Chipset
Number of Processors Supported 2
Processor Supported Xeon Gold
Xeon Silver
Xeon Bronz
Xeon Platinum
Chipset Manufacturer Intel
Chipset Model C620
Physical Characteristics
Color Silver
Form Factor Rack-mountable
Rack Height 2U Rack Mount
Height 3.4″
Width 19″
Depth 30.2″
