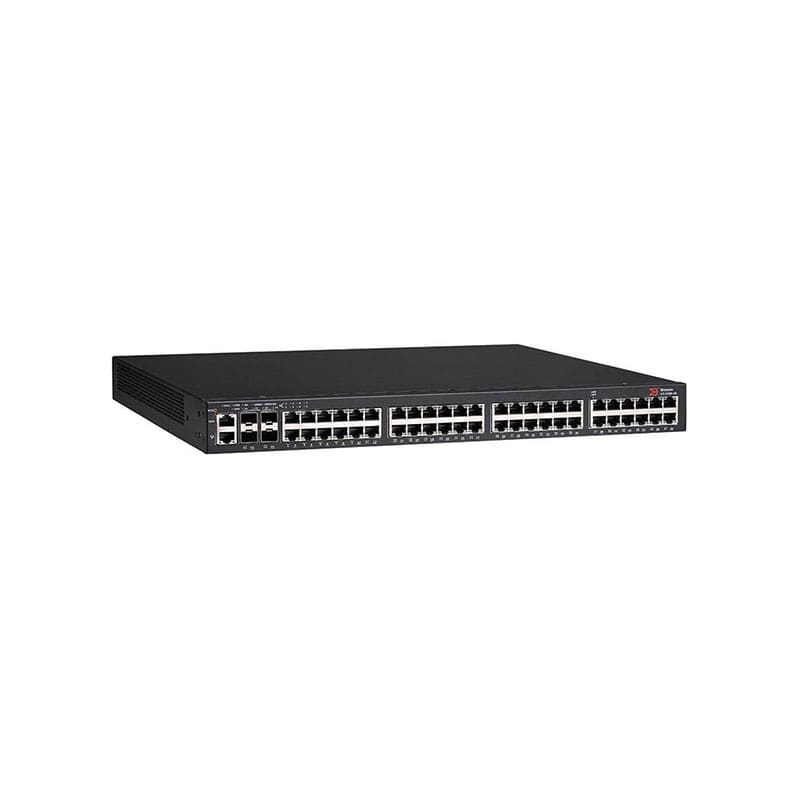

ICX6450-48-A Brocade ICX6450-48 Layer 3 Switch
ICX6450-48-A Overview
The Brocade ICX 6650 switch is a compact Ethernet switch that delivers industry-leading 10/40 GbE density, unmatched price/performance, and seamless scalability for the ultimate investment protection. Designed for demanding data center Top-of-Rack (ToR) environments and campus LAN aggregation deployments requiring cost-effective connectivity, the Brocade ICX 6650 offers flexible Ports on Demand (PoD) licensing for non-disruptive pay-as-you-grow scalability.
$3,499
ICX6450-48-A Technical Specifications
Brocade ICX6450-48 Layer 3 Switch
Manufacturer Part Number: ICX6450-48-A
Brand Name: Brocade
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details: 48 x Gigabit Ethernet Network, 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber, Twisted Pair
Ethernet Technology: 10 Gigabit Ethernet, Gigabit Ethernet
Network Technology: 10/100/1000Base-TX, 10GBase-SR, 10GBase-LR, 1000Base-LX, 1000Base-SX
I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP+
Shared SFP Slot: No
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.4″
Depth: 14.6″
Weight: (Approximate) 11.07 lb
