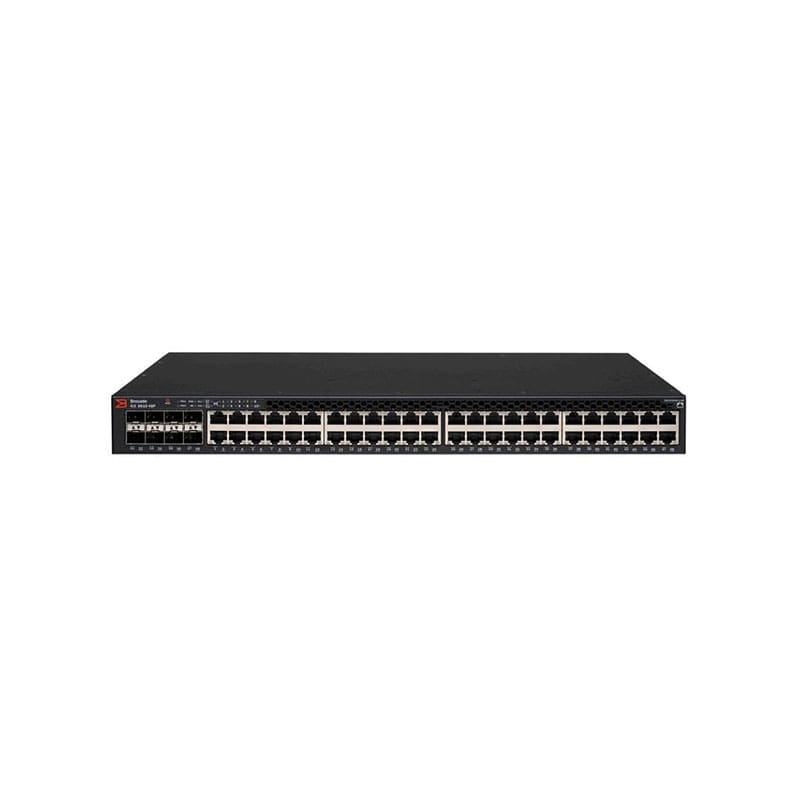

ICX6610-48P-E-RMT3 Brocade ICX 6610-48P 48-Ports Layer 3 Switch

ICX6610-48P-E-RMT3 Technical Specifications

Brocade ICX 6610-48P 48-Ports Layer 3 Switch

Manufacturer Part Number: ICX6610-48P-E-RMT3
Brand Name: Brocade
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Media & Performance
Media Type Supported: Optical Fiber, Twisted Pair
Ethernet Technology: Gigabit Ethernet, 40 Gigabit Ethernet
Network Technology: 10/100/1000Base-T, 10GBase-X, 40GBase-X
I/O Expansions
Number of Total Expansion Slots: 12
Expansion Slot Type: QSFP+, SFP+
Number of SFP+ Slots: 8
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: PoE+
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 16.9″
Depth: 16″
Weight (Approximate): 16.45 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS-6
